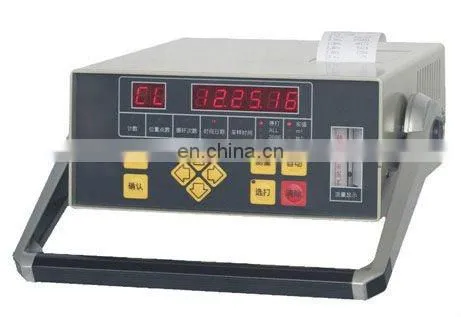

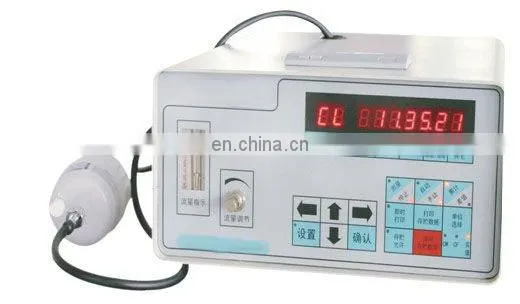

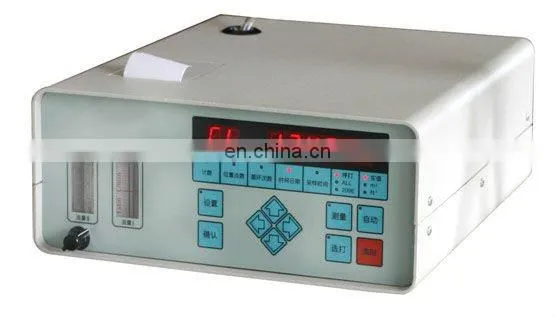

Help CenterHandheld Particle Counter
Related Products
Specifications
1.Display: LCD128x64 pixels, 4line x 8 Chinese characters2.Size: 95mm(W) *180mm (H) *65mm (D)
3.Handheld Particle Counter
Main Parameter:Handheld Particle Counter
Test particle size: fixed: 0.5μm;
optional :0.3μm ,0.7μm,1.0μm,2.0μm,3.0μm ,5.0μm,10.0μm
Test range: 10grade -0.3million grade
Repeatability: relative standard deviation≤±10%
Particle size accuracy: relative error≤±10%
Light source: laser diode as the light source of the sensor
Flow Rate: 2.83 l/min (0.1cfm) (error≤±5%)
Maximal sample time: 59min59sec
Self-purification time ≤10min
Display: LCD128x64 pixels, 4line x 8 Chinese characters
Interface: serial port (connect to external printer)
Power supply: Ni-MH battery (6.0V/3300mAH)
Battery working span: Successive testing time is appr
Size: 95mm (W) × 180mm (H) × 65mm (D)
Weight: 950g (with battery)
Operating temperature: 5~45°C ; Relative humidity ≤90%
Storage temperature: -20~50°C ; Relative humidity ≤90%
Supplied accessories: AC adaptor, self-purifier, e
Optional accessories: three-legged support, printer
Main functions:
Date and time display
COM internal serial printer interface: to connect with a printer
Over count alarm: six grades of over count alarm can be set up including 10grade, 100grade, 1000grade, 10000grade, 100000grade, 300000grade.
Data storage: 950 unites of data
External sensor for temperature & humidity measurement and data storage
Time-delay operation
Specially designed background light
