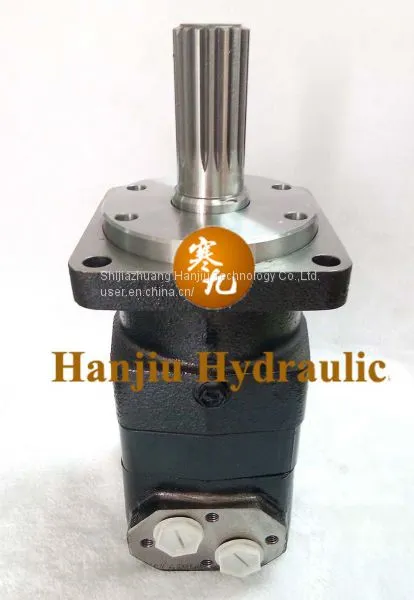

BMT Hydraulic Motor

BMT Hydraulic Motor thumbnail-1
BMT Hydraulic Motor photo-1
US$ 180 - 190 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Hanjiu
Place of Origin:
China
Model Number:
BMT
Contact Supplier Request Quote Chat Now
Shijiazhuang Hanjiu Technology Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hanjiu
Place of Origin China
Model Number BMT
Type Hydraulic Motors

Hydraulic orbit motor BMT

BMT series motor adapt the advanced Gerotor gear set design with disc distribution flow and high pressure. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic Features:
  *Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth and reliable
operation and high efficiency.
    *The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and high torque in the wide of applications.
   *Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.



Order Code:

 Code

Remarks

BMT
BMTS　

 Displacement

160
200
250
315
400
500
630
800　

 Flange

4

4-Ø14 Square-flangeØ160,pilotØ125×9

BMT

K6

4-Ø14.5Square-flangeØ162,pilotØ127×9

W

4-Ø18 Wheel-flangeØ200,pilotØ160×7

D

4-Ø14 Circle-flange Ø160,pilot Ø125×8

BMTS

E

4-Ø14.5 Square-flange Ø162, pilot Ø127×10

 Output Shaft

M

Shaft Ø40,parallel key 12×8×70

BMT

G

Shaft Ø38.1,parallel key 9.52×9.52×57.15

F

Shaft Ø38.1,splined tooth 17-DP12/24

FD

Shaft Ø38.1,splined tooth 17-DP12/24

T

Cone-shaft 1:10 Ø45,parallel key B12×8×28

T1

Cone-shaft 1:8 Ø45,parallel key 11.13×11.13×31.75

SL

shaft Ø34.85,Splined key,Splined key 6-34.85×28.14×8.64

G1

shaftØ31.75,parallel key 7.96×7.96×40

F1

Shaft Ø31.75,splined tooth 14-DP12/24

Omit

Short shaft 16-DP12/24

BMTS

 Port and Drain Port

D

G3/4 Manifold Mount,4-M10 , G1/4

M

M27×2 Manifold Mount,4-M10, M14×1.5

S

1-1/16-12UN O-ring, 9/16-18UNF

S1

1-1/16-12UN O-ring, 7/16-20UNF

G

G3/4,G1/4

M3

M27×2,M14×1.5

 Rotation Direction

Omit

Standard

R

Opposite

 Paint

00

No paint

Omit

Blue

B

Black

S

Silver grey

 Unusually Function

Omit

Standard

LL

Low Leakage

F

Free Running

LS

Low Speed


Main Specifications:

TypeBMT 160BMT 200BMT 230BMT 250BMT 315BMT 400BMT 500BMT 630BMT 800Geometric displacement(cm3 /rev.)161.1201.4232.5251.8326.3410.9523.6629.1801.8Max. speed   (rpm)cont.625625536500380305240196154int.780750643600460365285233185Max. torque  (N·m)cont.4705906707309501080122013181464int.56071082188011401260137014981520peak66983895810361346.31450.31643.81618.81665Max. output   (kW)cont.27.734.934.734.534.931.228.825.322.2int.3240404040353527.526.8Max. pressure drop(MPa)cont.202020202018161412.5int.242424242421181613peak282828282824211916Max. flow   (L/min)cont.100125125125125125125125125int.125150150150150150150150150Max. inlet pressure(MPa)cont.212121212121212121int.252525252525252525peak303030303030303030Weight (kg)19.52020.420.52122232425

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Substitute Reference substance


MOTOR CROSS REFERENCE TABLE

HANJIU
HYDRAULIC

M+S
HYDRAULIC

EATON
CHAR LYNN

DANFOSS

ROSS
TRW

WHITE
CROSS

PARKER

SAM
BREVINI

BOSCH
RECROTH

BMM

MM   MLHK

J SERIES

OMM


BGM

MGX

BMP/BM1

MP    HP

H SERIES

OMP DH

MF MG

WP RS

TC TE TB

BG

MGP GXP

BMR/BM2

MR HR MLHRW,RW

S,T SERIES  W SERIES

OMR DS  OMEW

MB

WR RE

TF

BR

MGR GMR

BMH/BM4

MH MLHH HW HWF

OMH

ME

RE

TG

BMS/BM5

MS MSY MLHS

2000 SERIES

OMS

ME

RE

TG

HPR

MGS GMS

BMT/BM6

MT MLHT MTM

6000 SERIES

OMT TMT

MJ

HT

MGT,GMT

BMV

MV MLHV

10000 SERIES

OMV



MGV GMV

Hydraulic orbit motor applications:
Brush cutters
Mower
Haveresting equipment
Forestry equipment
Turf equipment
