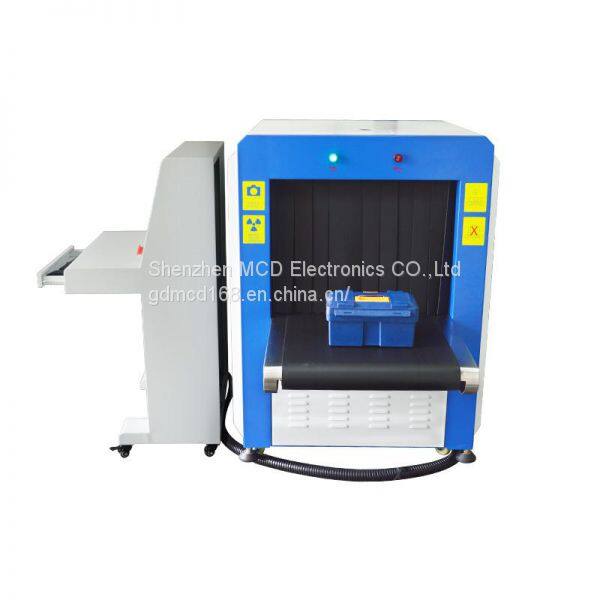

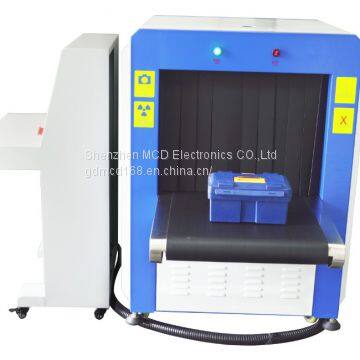

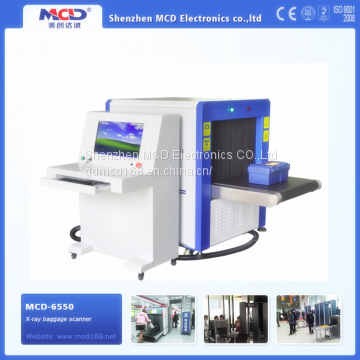

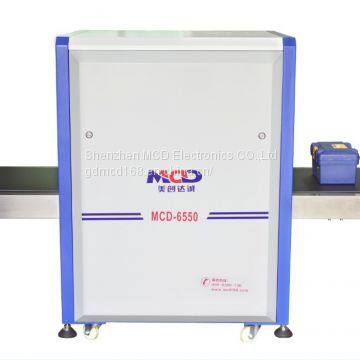

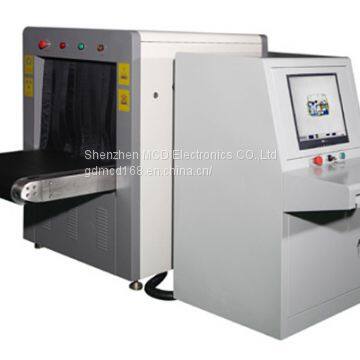

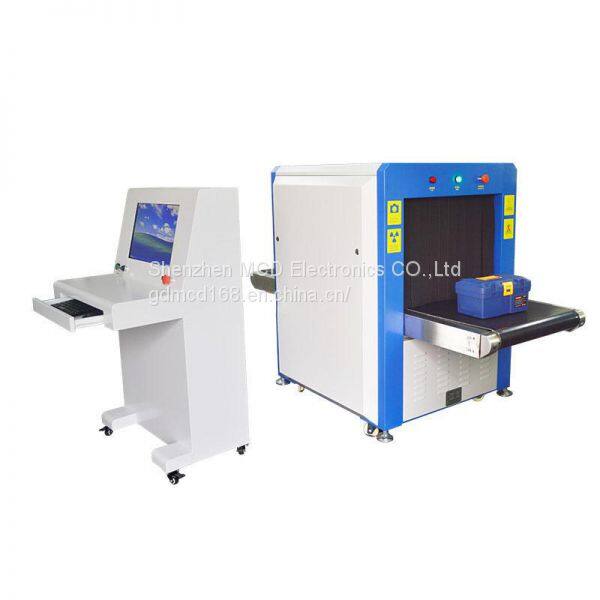

Middle Size Aviation Baggage And Parcel Inspection MCD-6550 Airport Baggage Inspection

Middle Size Aviation Baggage And Parcel Inspection MCD-6550 Airport Baggage Inspection

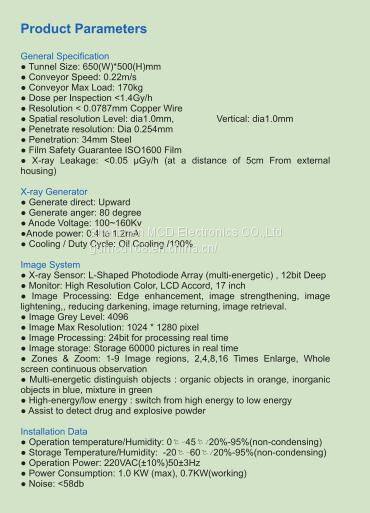

Product Parameters:

1.Detection Mode: X-Ray bottom shine detecting

2.Tunnel Size: 650(W)*500(H) mm

3.Conveyor Speed: 0.2m/s

4.Conveyor Max Load:170kg

5.Single inspection dosage: ＜1.5uGy

6.Wire Resolution:Ф0.1mm metal line

7.Steel Penetration:34MM metal line

8.Maximum leakage radiation: <0.05uGy/h

9.System Power:220AVC/50Hz

10.Power wastage:1.0KW(Max)

11.Noise: ＜65 dB

12.Operating Temperature: 0℃～45℃

13.Storage Temperature: -20℃～60℃

Feature and Application:

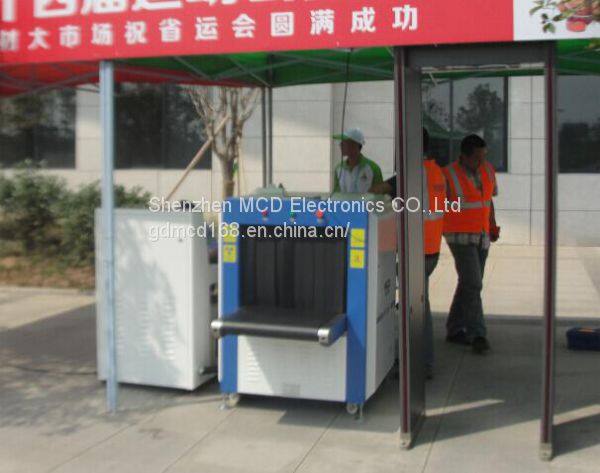

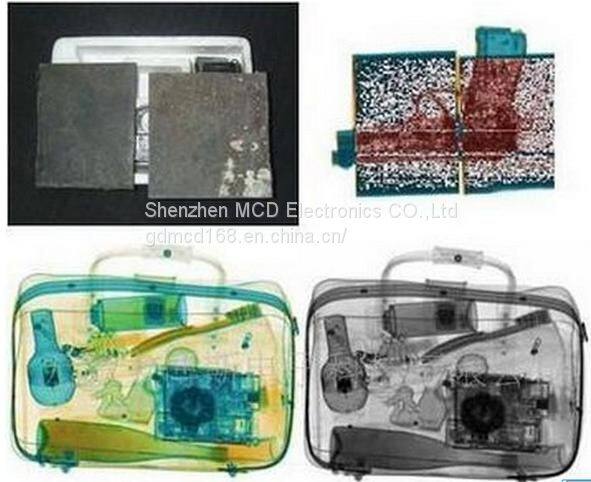

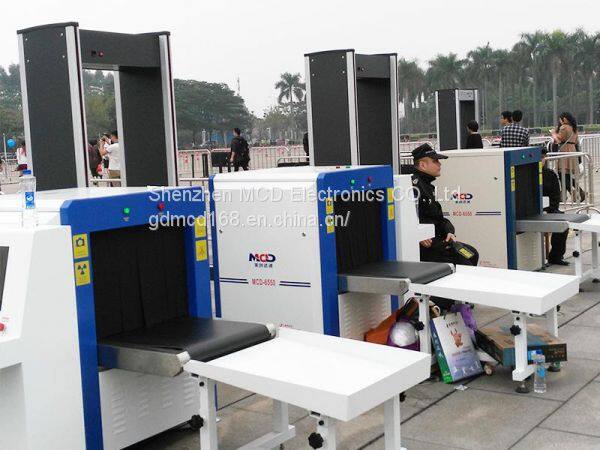

X-ray penetrate inspection, the object can be found within the metal structure, can display the naked eye can not see where the liquid is also very obvious object display. Used in the factory testing of security products and business units such as: electronic factories, shoe factories, toy factories, courts, railway stations, and event bag, line security management package

Company Information

Established in 2005

*With more than 300 people, among of which R&D 15 staffs, QC 22 people

*Main products: X-Ray Luggage Scanner, Hand-held Metal Detector, Food Metal Detector, Underground Metal Detector, Under Vehicle Search System, Walk-through Metal Detector.

*Main market: Africa, South America, East Europe, Southeast Asia, Middle East etc.

*Certificates: ISO9001:2008, CE, RoHS, FCC, SONCAP

*Area: 12,000 Square meters

OurCertificate:

Deliver time : 7-20 days after confirming order, details delivery date should be decided by production season and order quantities

Service: Warranty 1 year, there are professional staff to help deal the issue.

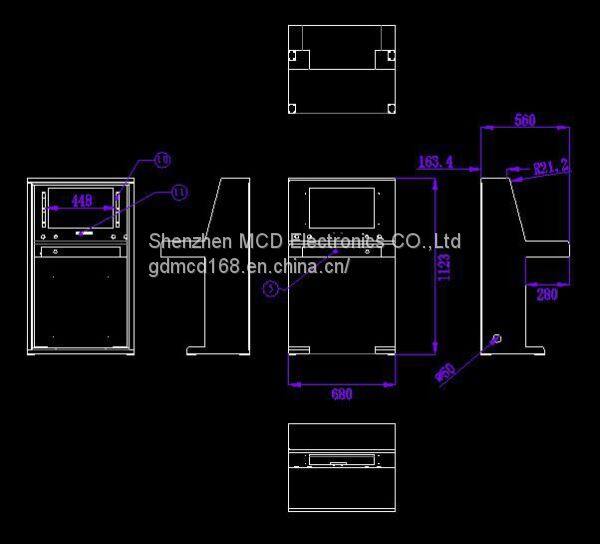

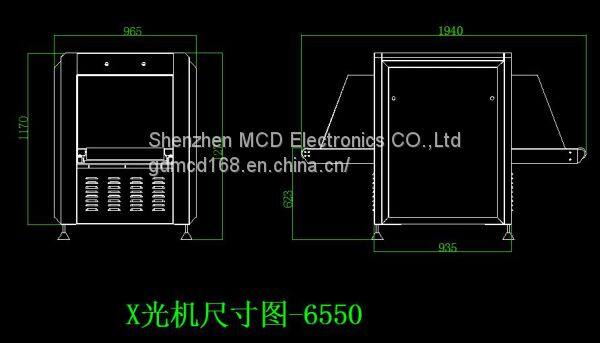

The section of the X-ray scanner

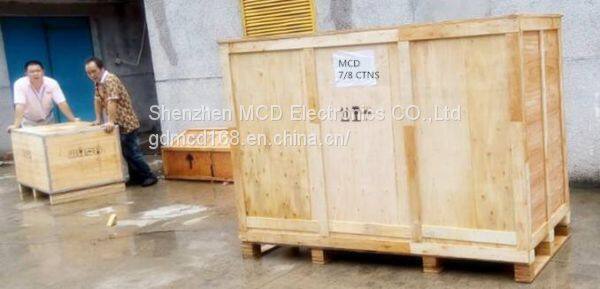

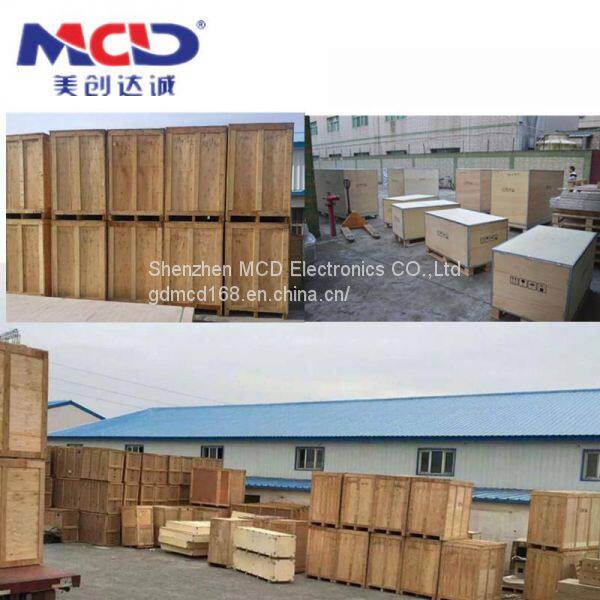

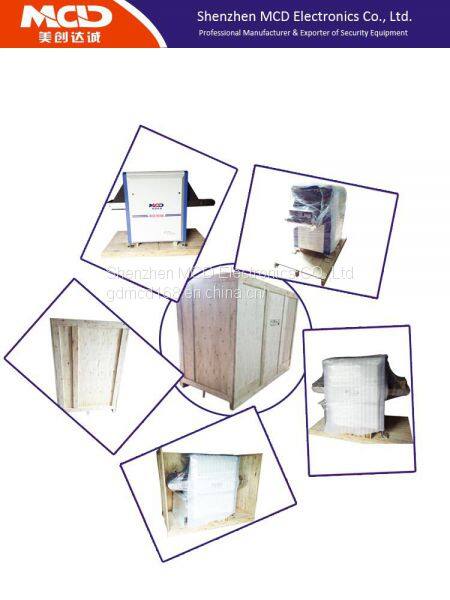

The package pictures: package with the wooden case
