2 Core Socket and Plug ODC FTTA Armoured fiber optic patch cord
Description

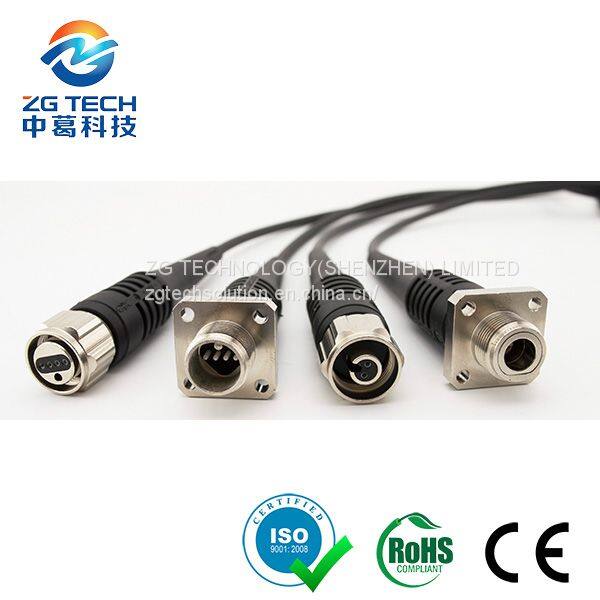

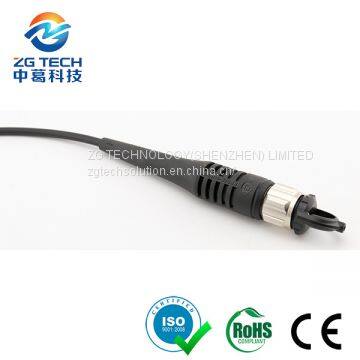

ZG TECH manufactures 2,4core ODC antenna feeder patch cables are made up of ODC plug/socket of outdoor connector with robust mating screwed mechanism and twin core plug duplex LC connectors. And the optical path is realized by connecting BBU(Building baseband Unit) to RRU(Remote Radio Unit). In order to ensure waterproof sealing, the ODC connectors are IP68/EMI protection, Salt-mist proof, the outdoor cable sheath adopts the low smoke halogen-free flame retardant materials (LSZH).
Applicants
Naval and ship building
Surveillance systems
Oil field, mine communication connection
Military communication equipment
Features
Easy and cost effective installation
High Vibration and Mechanical Resistance
Compact appearance
Be Installed Blindly,Quickly,Simply
pecification
| Fiber Core | 2,4 | |||
| Mode | Singlemode | Multimode | ||
| Operating Wavelength(nm) | 1310/1550 | 850/1310 | ||
| Polishment | UPC | APC | UPC | |
| Insertion Loss(Max.dB) | 0.7 | 0.6 | ||
| Return Loss(Min.dB) | 55 | 60 | 35 | |
| Mating times | 500 Min | |||
| Durability(Max.dB) | 0.2 | |||
| Reaptability(Max.dB) | 0.5 | |||
| Operating Temperature(℃) | -40~+85 | |||
| Storage Temperature(℃) | -40~+85 | |||
ZG TECH Factory Lines
ZG TECH Certificated by ISO9001-2008
Why Choose ZG TECH
1. A well-trained sales team for good communication and high-effective working
2. A well-experienced engineering team offering the professional technical support and the most flexible customization to realize the demands of each customer
3. Strict quality control from raw materials to the end products, ensure productive working and high quality
4. All products passed and got CE, RoHS certificates
5. A well-equipped factory with more than 100 staffs enable fast delivery time for market demands
6. we support our customer from small quantity to big quantity, become our partner to work together for win-win
