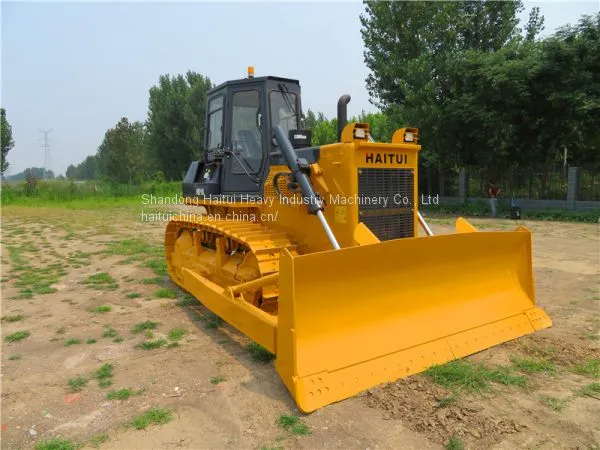

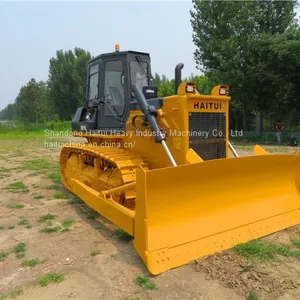

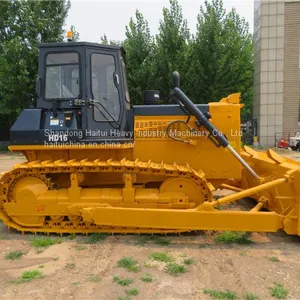

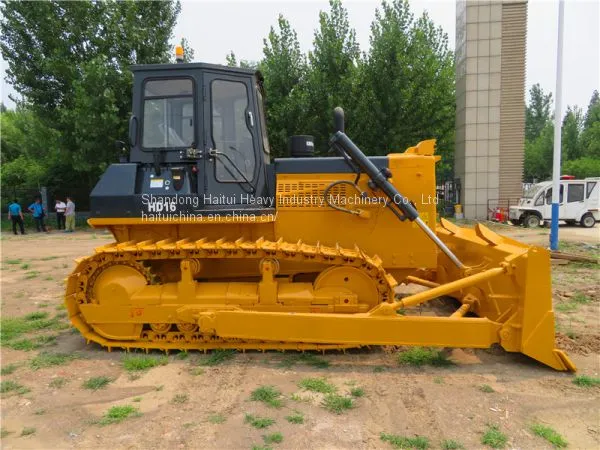

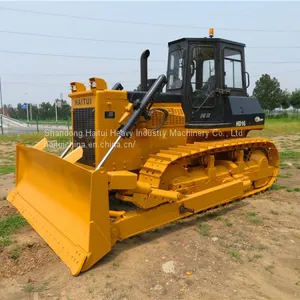

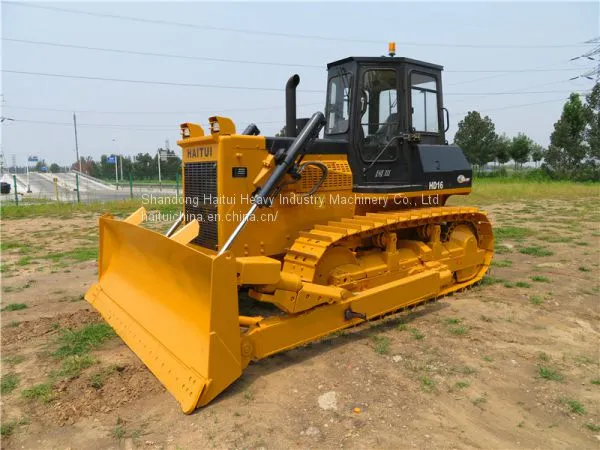

Haitui HD16 Crawler Bulldozer
US$ 71000 - 71500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Haitui
Place of Origin:
China
Model Number:
HD16
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
30 days
Related Products
-
Haitui HD22 Crawler Bulldozer/bulldozers/construction Machinery/construction Machines/earthmoving Machines/heavy EquipUS$ 113000 - 113500MOQ: 1 Set -
Haitui HD32 Crawler BulldozerUS$ 164500 - 165000MOQ: 1 Set
-
Hatui HD16TL Bulldozer/bulldozers/crawler Bulldozers/Swamp Bulldozers/earthmovers/construction Machinery/machinesUS$ 75500 - 76000MOQ: 1 Set
-
HAITUI HE210-8 ExcavatorUS$ 90500 - 91000MOQ: 1 Set
-
HAITUI HE240-8 ExcavatorUS$ 93500 - 94000MOQ: 1 Set
Brand Name
Haitui
Place of Origin
China
Model Number
HD16
After-sales Service Provided
Overseas third-party support available
Condition
New
Dimension(Long * Breadth * High)
5140×3388×3032 mm
Machine Weight
17000kg
Moving Type
Crawler Bulldozer
| HD16 | |
| Engine model | Weichai WP10G178E355 |
| Rated power(kw/rpm) | 131/1850 kw/rpm----160HP |
| Displacement(L) | 9.726 |
| Max.torque(N.m/rpm) | 830/1000-1200 |
| Operating weight(Kg) | 17000 |
| Dimension(no ripper)(mm) | 5140×3388×3032 |
| Min ground clearance(mm) | 405 |
| Ground pressure(MPa) | 0.067 |
| Track shoe width(mm) | 510 |
| Track gauge(mm) | 1880 |
| Dozing capacity( m³) | 4.55 |
| Blade width(mm) | 3390 |
| Blade height(mm) | 1150 |
| Max drop below ground(mm) | 540 |
| Pitch(mm) | 203.2 |
| Quantity of track link | 37 |
| Quantity of Carrier rollers | 4 |
| Quantity of Track rollers | 12 |
| Max pressure(MPa) | 14 |
| Discharge(L/min) | 213 |
| Max tractor force(KN) | 146 |
| Grade ability(°) | 30 |
| Forward(km/h) | 3.29/5.82/9.63 |
| Reverse(km/h) | 4.28/7.59/12.53 |
