Ring Type Pre-insulated Terminals, Wire Terminal Types, RV1.25-3,RV1.25-4,RV2-3,RV2-4,RV3.5-4,RV5.5-4

Ring Type Pre-insulated Terminals, Wire Terminal Types, RV1.25-3,RV1.25-4,RV2-3,RV2-4,RV3.5-4,RV5.5-4 thumbnail-1
Ring Type Pre-insulated Terminals, Wire Terminal Types, RV1.25-3,RV1.25-4,RV2-3,RV2-4,RV3.5-4,RV5.5-4 thumbnail-2
Ring Type Pre-insulated Terminals, Wire Terminal Types, RV1.25-3,RV1.25-4,RV2-3,RV2-4,RV3.5-4,RV5.5-4 photo-1

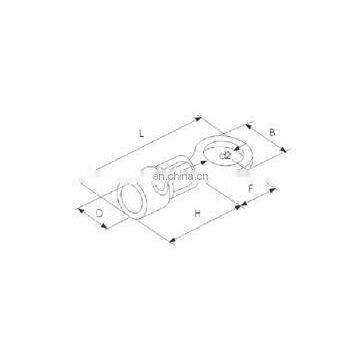

Ring Type Pre-insulated Terminals, Wire Terminal Types, RV1.25-3,RV1.25-4,RV2-3,RV2-4,RV3.5-4,RV5.5-4 photo-2
US$ 0.01 - 0.1 MOQ: 20000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
RD
Model Number:
RV1.25-3,RV1.25-4,RV2-3,RV2-4,RV3.5-4,RV5.5-4
Contact Supplier Request Quote Chat Now
Wenzhou Royal Dragon Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name RD
Model Number RV1.25-3,RV1.25-4,RV2-3,RV2-4,RV3.5-4,RV5.5-4
Type Crimp Terminal
Cross-section of conductor:0.5~1.5mm2(22-16) Max. current =19A



Model American
System's Bolts		 Diameter of Bolts
d2(mm)		 Size Color
B(mm) L(mm) F(mm) H(mm) D(mm)
RV1.25-3 #4 3.2mm 5.7 17.8 4.95 10.0 4.3 Red
RVS1.25-3.5 #6 3.7mm 5.7 17.8 4.95
RVM1.25-3.5 #6 3.7mm 6.6 20.1 6.3
RVL1.25-3.5 #6 3.7mm 8.0 21.5 7.0
RVS1.25-4 #8 4.3mm 6.6 20.1 6.3
RVL1.25-4 #8 4.3mm 8.0 21.5 7.0
RV1.25-5 #10 5.3mm 8.0 21.5 7.0
RV1.25-6 1/4 6.5mm 11.6 27.5 11.1
RV1.25-8 5/16 8.4mm 11.6 27.5 11.0
RV1.25-10 3/8 10.5mm 13.6 31.6 13.9

Cross-section of conductor:0.5~1.5mm2(16-14) Max. current =27A



Model American
System's Bolts		 Diameter of Bolts
d2(mm)		 Size Color
B(mm) L(mm) F(mm) H(mm) D(mm)
RV2-3 #4 3.2mm 6.6 17.8 4.3 10.0 4.9 Blue
RVS2-3.5 #6 3.7mm 6.6 17.8 4.3
RVM2-3.5 #6 3.7mm 6.6 20.1 7.0
RVL2-3.5 #6 3.7mm 8.5 22.5 7.75
RVS2-4 #8 4.3mm 6.6 21.0 7.0
RVL2-4 #8 4.3mm 8.5 22.5 7.75
RVS2-5 #10 5.3mm 8.5 22.5 7.75
RVL2-5 #10 5.3mm 9.5 22.5 7.25
RV2-6 1/4 6.5mm 12.0 27.6 11.0
RV2-8 5/16 8.4mm 12.0 27.6 11.0
RV2-10 3/8 10.5mm 13.6 30.2 13.9

Cross-section of conductor:2.5~4mm2(14-12) Max. current =37A



Model American
System's Bolts		 Diameter of Bolts
d2(mm)		 Size Color
B(mm) L(mm) F(mm) H(mm) D(mm)
RV3.5-4 #8 4.3mm 8.0 24.5 7.7 12.5 6.2 Black
RVS3.5-5 #10 5.3mm 8.0 24.5 7.7
RVL3.5-5 #10 5.3mm 12.0 27.9 7.7
RV3.5-6 1/4 6.5mm 12.0 27.9 7.7

Cross-section of conductor:4-6mm2(12-10) Max. current =48A



Model American
System's Bolts		 Diameter of Bolts
d2(mm)		 Size Color
B(mm) L(mm) F(mm) H(mm) D(mm)
RV5.5-3.5 #6 3.7mm 7.2 21.4 5.9 12.5 6.7 Yellow
RVS5.5-4 #8 4.3mm 7.2 21.5 5.9
RVL5.5-4 #8 4.3mm 9.5 25.5 8.3
RV5.5-5 #10 5.3mm 9.5 25.5 8.3
RV5.5-6 1/4 6.5mm 12.0 31.5 13.0
RV5.5-8 5/16 8.4mm 15.0 33.7 13.7
RV5.5-10 3/8 10.5mm 15.0 33.7 13.7
RV5.5-12 1/2 13.0mm 19.2 38.1 16.0
