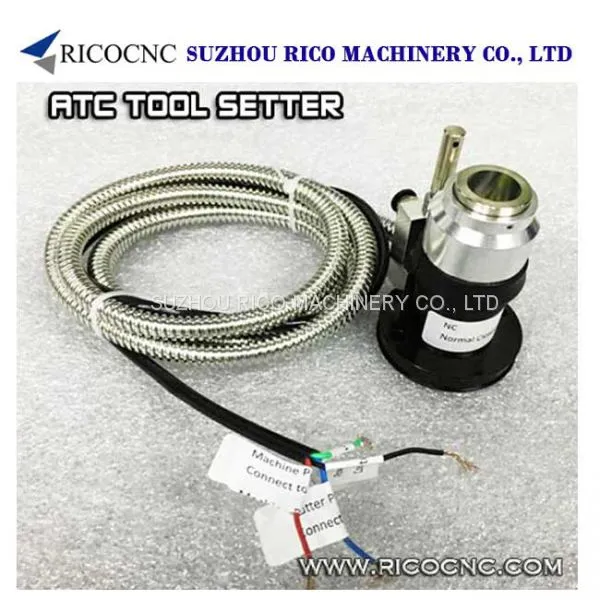

Electronic Auto Tool Setting Probing Sensor Tool Length Offsets CNC Auto Tool Height Set Gauge
This cnc tool length sensor is automatic tool setting gauge tool touch sensor for cnc engraving drilling milling machines, especially forauto tool changer cnc machines. It is easy to found in A.T.C. cnc routers and CNC milling machines.
The cnc auto tool height set, is typically used to measure and set tool lengths and Z-axis work offsets. When contacted by a tool it works with the machine control software to record position. The tool setter enables fast and accurate measurement of tools and setup of jobs.
The touch sensor for automatic tool length offset setting, all tooling is pre set on the tool setting bench, away from the machine. Automated functions within the machine allow for operator commands such as probe and set one specific tool, probe all tools in the magazine, probe for tool breakage, etc.
Automatic Tool Length Sensor Parameters:
Output mode: B: NC (normal closed)
Stroke: 5mm
Positioning accurancy: 0.001mm (Speed: 50-200mm/min)
Contact lifetime: 3 million times
Contact force: 1.5N
Contact parts: Cemented carbide alloy
Outer shell: Grinding 4S
Protection: IP67
Contact rate: DC24V 20Ma (max) Recommed 10mA resistive load
Cable: 3 meters
Protection tube: 1m
LED light: often ON, when working OFF
Have air blow function
RicoCNC also have NO (normal open) model for supply.
RicoCNC supplies a range of CNC machine spares, tool systems and accessories.
Welcome your inquiry.
