2.4GHz Wireless 3.5 inch Monitor Parking Car Reversing System
Item No: WRD735S120
Dimension:18x17x12cm
This Wlreless Rear View Sytyem Kit can automatically switch to rear view when reverse.

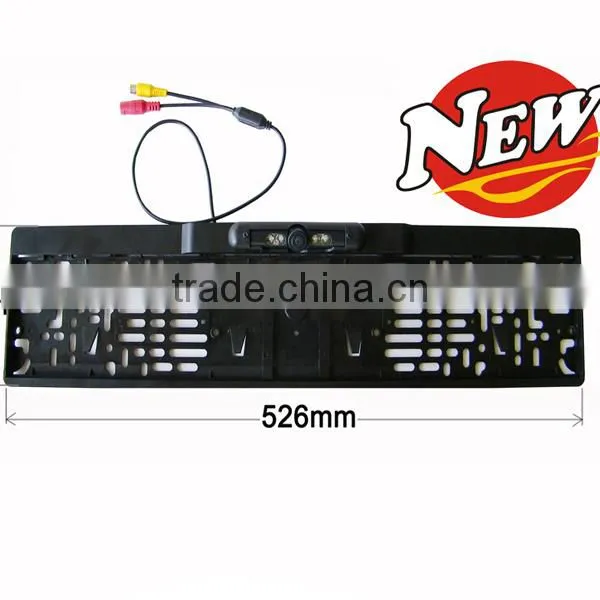

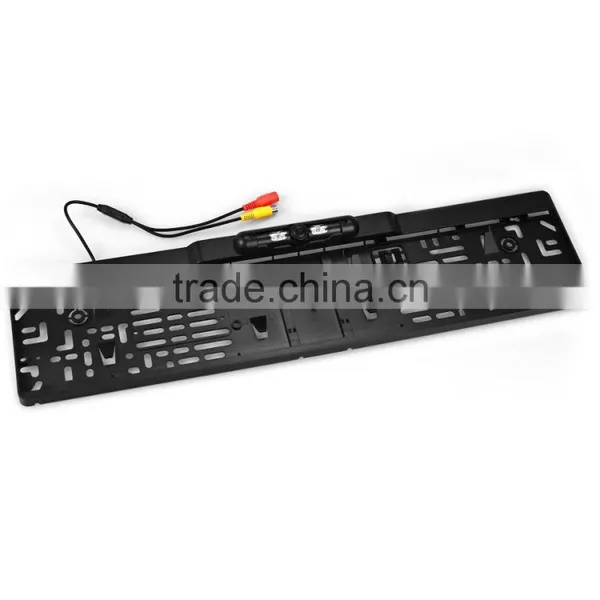

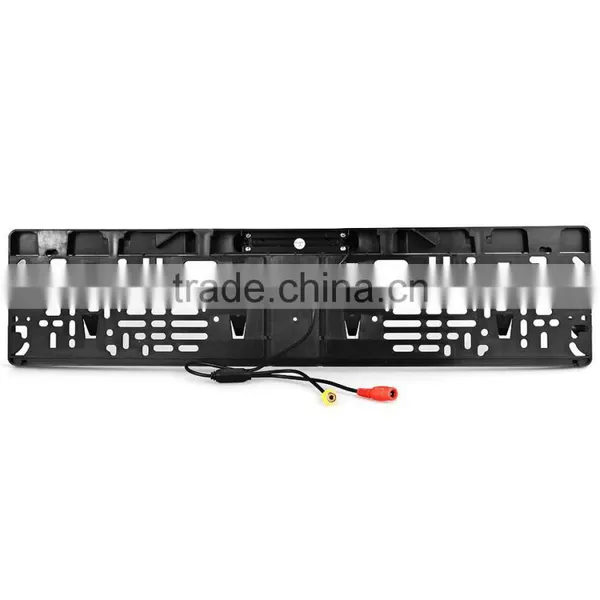

The Metal housing 480 TVLs high resolution camera gives you clear image of the back of vehicle.
Wireless model easies the installation much more when compared with those wired ones.
3.5 inch Monitor 2.4GHz Wireless Reverse Camera And Parking Sensor Features
1. 2.4G Built-in Wireless! Unique tech design !
2. Wide transmission range: 60meters
3. Automatically switch on when reverse gear is engaged
4. High digital resolution TFT-LCD monitor: 960*240 (DOT)
5. Display size: 3.5 inches
6. Monitor is powered from the cigarette lighter socket (DC 12V only)
7. Monitor mounts to windshield fir, easy-to-see rear coverage
8. Monitor can be 360 degree circumrotated
9. PAL or NTSC system auto convert
10. With buttons for menu operation

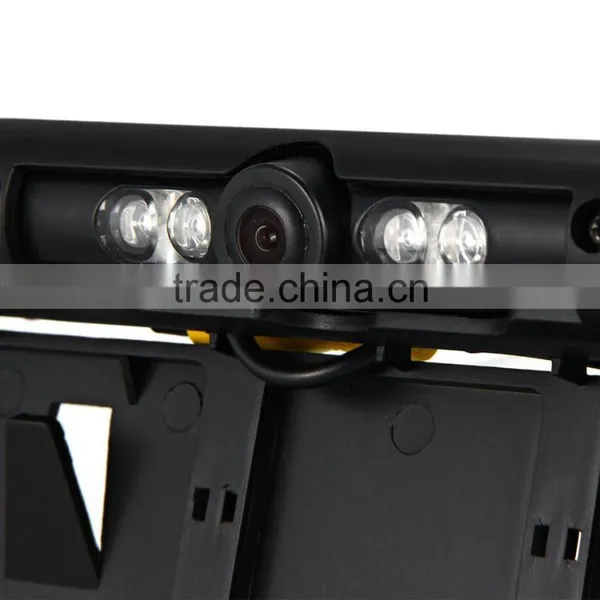

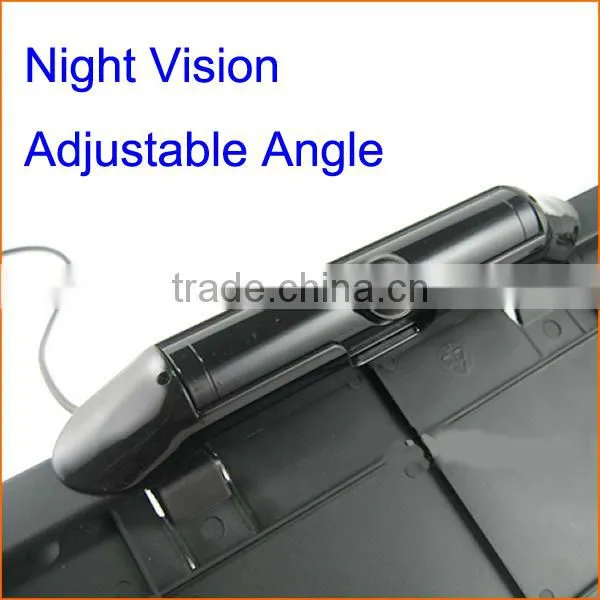

11. One video input ,12. Camera: wide angle (170°), High resolution (480TV line), extra-low illumination for clear,night vision.
13. Complete water-proof lens.

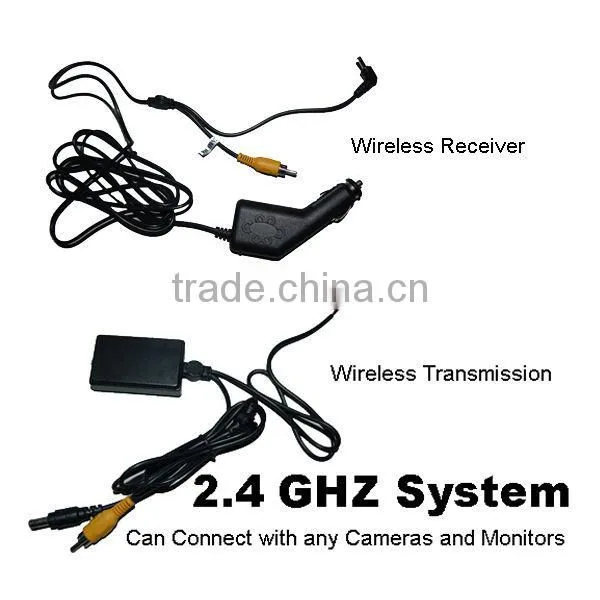

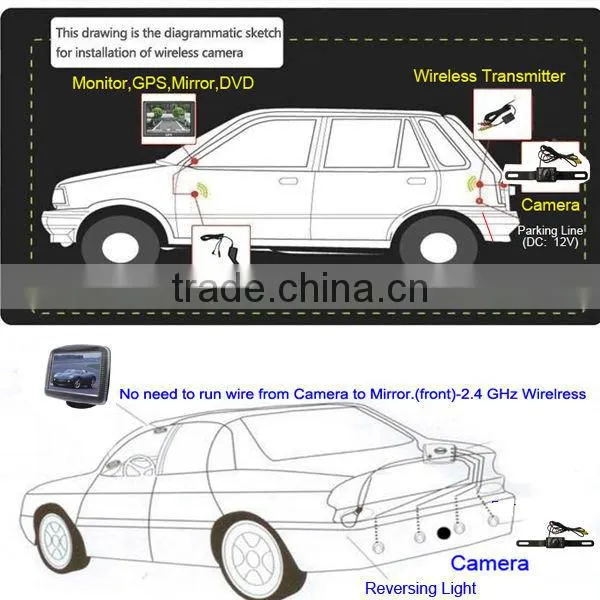

14. Easy and neat installation: receiver inside car charger, transmitter inside camera.
The distance between the Monitor to camera should be under 5M.
TECHNICAL SPECIFICATON OF MONITOR AND INTERNAL RECEIVER
Supply voltage |
DC10.5V-15V(12V normal) |
Current consumption |
300mA(Max.) |
Operating temperature |
-20°C~60°C |
TV System |
PAL or NTSC system auto convert |
Resolution |
960xRGBX240 |
Screen size |
3.5 inches |
Video input |
One video input |
Turn on mode |
Automatic turn on when receiving video signal |
Receiver: Wireless transmission frequency |
2.4Ghz |
Receiver: Wireless transmission range |
More than 60 meters for open space |
Supply voltage |
DC10.5V-15V(12V normal) |
Current consumption |
100mA(Max.) |
Operating temperature |
-30°C~70°C |
Image device |
1/4 inch color, VC0702 |
TV System |
NTSC system |
Resolution |
420 TV lines |
Effective pixels |
720*480 |
Minimum illumination |
0.5 LUX. |
View angle |
120 degree (diagonal) |
S/N ratio |
More than 48db (AGC-Off) |
Video out put |
RCA connector 1.0vp-p 75 ohm |
Others |
Automatic white balance, AGC and BLC |
Transmitter: Wireless transmission frequency |
2.4Ghz |
Transmitter: Wireless transmission range |
60 meters for open space |

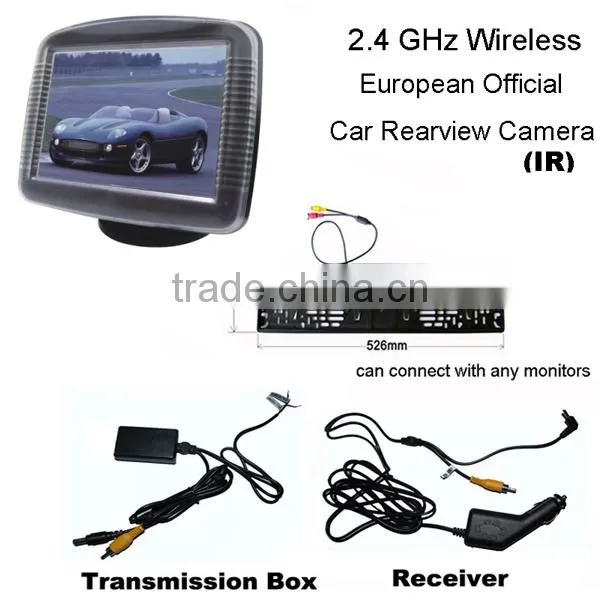

1×monitor
1×camera
1×Auto Charger(Receiver inside)
1×power cable
1×angle spacer
2×quick splices
2×screws
4×plastic bundles
1×manual
3.5 inch Monitor
3.5 inch Monitor 2.4GHz Wireless Reverse Camera And Parking Sensor Our Factory and HK Fair:
We offer TWO YEAR warranty from the date of product received, if you found it broken and cannot be repaired, please contact us.We will not be responsible for the damage from improper installation, accident, misuse, abuse, improper wiring and incorrect voltage while operating the unit against the instructions in the owner's manual.
We do care about our valued customers and understand the concerns and frustrations you might have and will try our best to resolve all the issues.
We strive to answer all emails as quickly as possible, but due to high email volume it may take time for us to reply. Thanks in advance for your patience!
Paypal,Western Union, Telegraph Transfer is also acceptable.
If sampes(less then 100 pcs)can be shipped via express.(DHL,UPS,EMS)
Each order will be delivered within 24 hours with a clear payment. Due to the updates, bad weather, peak season, custom trouble, there will have some delay, thanks for your understand.
More than 500 pcs,can by via air or via sea.7 days.
You can order single items as samples.No MOQ.
12 month warranty.
Shipping worldwide.
Drop-shipping available.
Ice Huang online Best Service For You.
Very glad to contact!We are Shenzhen Windstone Electronic Co.Ltd,specializing in manufacturing and exporting many styles of Car Bluetooth Handsfree rearivew mirror,Car Parking Sensor system,Car GPS Navigation System more than 10 years.With 10 years' experience,We have our factories,So,we can meet your requirements and on-time order delivery.Every year,we export more than USD 10,000,000 to USA,Canada,Europe,Australia and Middle East.
Please feel free to contact us for further details.We look forward to having chances to start our cooperation for a long time."High Quality Products, Fast Shipment Service, Competitive Price for all customers" is our tenet.
Best regard!
Your own design,logo and small order are welcome
Our working time: 9:00 AM - 18:30 PM (BeiJing Time) Monday - Sunday
Contact us freely for any problems you may have or ask for help, we will answer you as soon as possible.
Ice Huang online service for you MP:0086-13530335510
