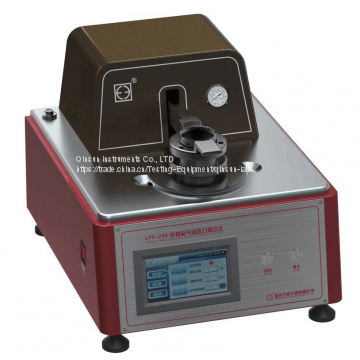

Textile Airflow Resistance Measurement

Textile Airflow resistance measurement

Applications：
Quality control in production process.
Testing in research and development.
Fabric Airflow resistance tester also known as air resistance tester is mainly used for the measurement of air textiles and cotton wool,
cotton space such as penetration resistance, the identification of clothing, textiles, medical textiles in particular, comfort and health.

Applicable standards:
GB19083-2010 technical requirements for medical protective masks

Instrument features:
1, the instrument can be adjusted by the flow of air, the sample holding means, pressure measurement system.
2, Digital display flow resistance with zero calibration and accuracy correction.
3, easy to operate

Technical Parameters:
1, air flow adjustment range: 10L / min-100 L / min (600L / h-6000 L / h)
2, airflow resistance measurement range: 0-1kPa
3, Test time: 1 second to 99 hours optionally
4, Power: AC220V, 50Hz
5, Total Power: 1.2KW

Features：
Fast and accurate measurement and readout of measurement results.
Accepts test material of various form and size.
Easy setup and use.
Large dynamic range of measurement.
