Medical USA Dual Cavity Laser Tattoo Removal Q Switch ND YAG Laser Machine

Working principle:

Our newest Electro-Optic ND YAG Q-switch laser is most professional-effective on Epidermal pigment, such as body tattoo removal, eye line and brow tattoo removal...etc, Dermal pigment, such as Nevus, age spot. Freckle, birth mark, varicosity removal...etc. This machine can be used for beauty salon, clinic, spa, hospital...etc.

Treatment Scope:

1. Epidermal pigment: Body Tattoo, Eye line and brow Tattoo.

2. Dermal pigment: Nevus of Ota, birth mark, Coffee Spot, Age Spot, Freckle.

3. Vessels disease: varicosity removal, capillary hemangioma.

4. Laser facial: oil control, skin rejuvenation, skin pore improvement.

Technical parameter:

Dimensions920× 555 ×1065mm  not including joints arm

Weight100kg

Wastage power                      800VA

Fuse220V, 10A

Output modeQ-switch Pulsed output

Wavelength1064nm, 532nm

Pulse Duration10±3ns

Frequency1Hz, 2Hz,5Hz

Single Pulse energy250mJ-1500mj

Safety distanceNOHD 1km.   Operator must wear goggles

Cooling systemWater cooled

Work modeContinually work with intervals

Spot SizeContinually adjustable

Optical and electrical performance:

Energy of single pulse250mj-1500mj

Unstable output rangeST≤±10%

Output repeatRj<10%

Error of expected energy

and practical energy

≤±20%

Spot diameter1-4mm        adjustable

Focus error≤±0.5mm

Pc output power of collimate laser0.1mW≤Pc≤5mW

Adjustable range of Joints armHorizontal ≥45o   Uprightness 60cm-80cm

Advantage:

1. 12 inch TFT color touch screen, 270° totating freely.

2. Pulse width is 8ns±2ns, crushed pigment more thoroughly, more minor skin damage.

3. 1Hz-10Hz higher frequency, more faster treatment.

4. Top hat Electric adjustable Q (Photoacoustic conduction, higher frequency, easy to control)

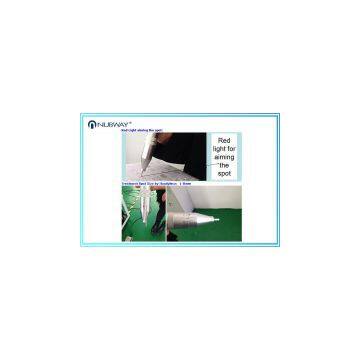

5. 650nm led beam point, find the right treatment area exactly.

6. Spot size can be adjusted through focus adjustment lens---0.7-8mm.

7. All pure metal shell keep the machine in safe protection, more stable and stronger.

2014 newest Q switch nd yag laser tattoo removal machine tattoo removal equipment

Features:

1. The main parts

1). Dual cavity dual rod----USA cavity, Germany mirror, Russian laser bar, ensure our laser more powerful and long using-life.

2). Radiator---Big radiator makes water cooling system reach to best, ensure machine work for a longer time.

3). Power---Intelligent power supply: it is self-checking system

4). Light guiding arm---Imported from Korea 7 jointed arm delivery system, make it easy for long time treatment.

5). Water tank---18L big water tank, ensure perfect water circulation.

6). Black doll probe & Wavelength conversion parts---Motor driver auto-switching with 1064/532mm wavelength change. Our nd-yag also has one special probe: 1320nm black doll probe.

2014 newest Q switch nd yag laser tattoo removal machine tattoo removal equipment

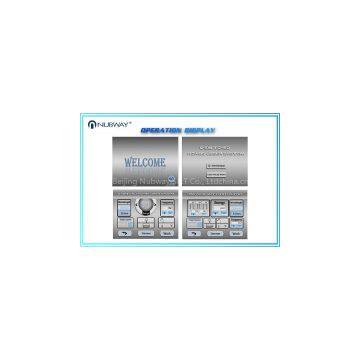

2. LCD and operation system

1). Clear&convenient opertion touch screen, humanization operation syatem.

2). Intelligent self-checking system, check water flow and temperature automatically, which confirm the safety, Stability and longer life of the machine

Our Services:

1. 3 years warranty with lifetime free service and maintenance

2. Free training for operation of the equipment in our company, which provided by our specialized training department.

3. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the laser equipment, and after-sale maintenance and more.

4. OEM/ODM services are available. We have our own developing and design department and manufacturing line, which ensure your required beauty equipment

5. Professional after-sale service team, solve all the problem in time
