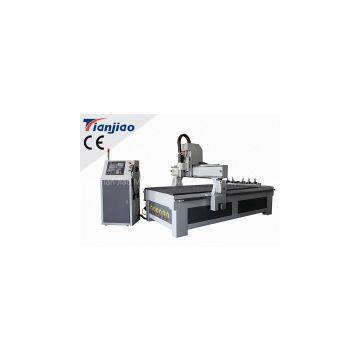

Linear Type small ATC cnc woodworking machinery for sale
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | TianJiao | Place of Origin | China | |
| Model Number | TJ1325AT-Ls |
Product Description
1. Linear Type small ATC cnc woodworking machinery for sale
Parameter
NO. Description | Parameter | |
1 | Table size | 1480*3000mm |
2 | X,Y working area | 1300*2500mm |
3 | Z working area | 200mm |
4 | Max. speed | 35m/min |
5 | Working Speed | 25m/min |
6 | Resolution/work delicacy | 0.02mm |
7 | Repositioning Accuracy | 0.05mm |
8 | Interface | USB |
9 | Command | G code*.u00*.mmg* plt |
10 | Surroundings for software | windows98/2000/xp |
11 | Control system | Weihong control system |
12 | Power(spindle power is not included) | 8.87KW |
13 | Working voltage | AC380V 50Hz |
14 | Spindle power (domestic made) | 6KW water cooling spindle |
15 | Spindle rotating speed | 0-24000rpm/min |
16 | Motor | Japan servo motor |
2.Advantage Features:
1.Adopt domestic water cooling spindle of big power(option: Italy HSD
8KW air cooling spindle)
2.high accuracy, long service time, steady movement and good starting
performance, great torque, fulfilling the advantage of working with fast speed
and low noise.
3.China servo motor(Japan YASKAWA servo motor ) ensures machine to run
with fast speed and low noise
4.unique auto tool changer system can change tools alternatively, tool sensor to
compensate the tolerance of tool length
5.tool magazine capacity of 8tools, changing tools only takes 8 seconds
