Help CenterHigh Speed Braiding Machine
Related Products
the braiding machine produced by our company are widely applied in variety of areas，for example：weaving kinds of rope belt，lace，wire and cable，high pressurre hose，glass fiber casing，car line element，sealing packing，etc.
8/4,9/4,13/4,12/4,16/4,17/4,20/4,21/4,24/2,25/2,32/2,48/1.
Shoelace braiding machine,rope braidingmachine,belts,elastic belts,garment accessories.

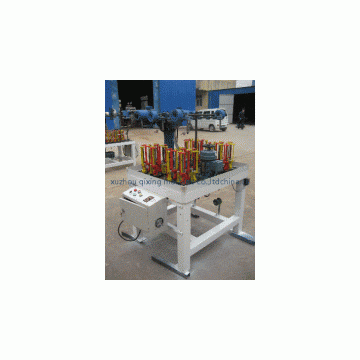

The technical detail of the 90 series 2head 24 spindle high speed braiding machine.
The size of the bobbin:total length:157mm
,inner length :139mm,the diameter of the disk:48mm,the diameter of the inner hole:13mm
Hight of the spindle:250mm,elasticity pull rate:0.4.0.5.0.6.0.7.0.8.0.9
Speed of the spindle:60rpm
Pitch range:3-35mm(according to the material and the size of theyarn and strand of the yarn)
Power of motor:0.75kw
Speed of the impeller:360rpm
Motor speed:1700rpm
Voltage:according to the client demand.
Spare parts:96 bobbins,50 spindles,12 pitchgears,a toolbox.etc
Merit
Adopting frequency control,possessauto-stop system,wrapped centre yarn feeder,low waste and high production,,lowwear and tear of spare parts,the work table runs stable,easy to maintain andoperate.
8/4,9/4,13/4,12/4,16/4,17/4,20/4,21/4,24/2,25/2,32/2,48/1.
Shoelace braiding machine,rope braidingmachine,belts,elastic belts,garment accessories.
The technical detail of the 90 series 2head 24 spindle high speed braiding machine.
The size of the bobbin:total length:157mm
,inner length :139mm,the diameter of the disk:48mm,the diameter of the inner hole:13mm
Hight of the spindle:250mm,elasticity pull rate:0.4.0.5.0.6.0.7.0.8.0.9
Speed of the spindle:60rpm
Pitch range:3-35mm(according to the material and the size of theyarn and strand of the yarn)
Power of motor:0.75kw
Speed of the impeller:360rpm
Motor speed:1700rpm
Voltage:according to the client demand.
Spare parts:96 bobbins,50 spindles,12 pitchgears,a toolbox.etc
Merit
Adopting frequency control,possessauto-stop system,wrapped centre yarn feeder,low waste and high production,,lowwear and tear of spare parts,the work table runs stable,easy to maintain andoperate.
