Home > Products > New product > Dahua 4/8/16 Channel IP Network Nvr Recorder Dahua NVR3204 NVR3208 NVR3216 Onvif

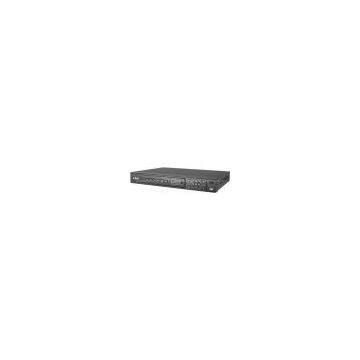

Dahua 4/8/16 Channel IP Network Nvr Recorder Dahua NVR3204 NVR3208 NVR3216 Onvif
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
H.264 Mini Nvr Mobile Phone Multi-language Support IE Chrome Firefox Safari HK-NVR5204F
-
2M HD IR IP Camera Mobile Phone Support (HK-HT-XA220)
-
2.0MP Camera 1080p Camera 15m IR Support Mobile HK-HT-E220 HD 1080p IP Camera
-
Cheap Full HD 1080p Camera IP Camera HK-HT-XB220 Camera Support Iphone,Ipad,Android
Product Details
| Place of Origin | China | |
| Model Number | NVR3204 |
Product Description
| Model No. | NVR3204 | NVR3208 | NVR3216 |
| Main Processor | Dual-core embedded processor | ||
| Operating System | Embedded Linux | ||
| IP Camera Input | 4ch | 8ch | 16ch |
| Two-way Talk | 1 channel Input, 1 channel Output, BNC | ||
| Interface | 1 HDMI, 1 VGA | ||
| Resolution | 1920 * 1080, 1280 * 1024, 1280 * 720, 1024 * 768 | ||
| Display Split | 1/4 | 1/4/8/9 | 1/4/8/9/16 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||
| ompression | H.264 / MJPEG | ||
| Resolution | 1080P(1920 * 1080) / 720P(1280 * 720) / D1 (704 * 576/704 * 480) | ||
| Record Rate | 400/480fps D1, 200/240fps720P , 100/120fps 1080P | ||
| Bit Rate | 48 ~ 8192kbps | ||
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | ||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips | ||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||
| Alarm Input | 4ch | 8ch | 16ch |
| Relay Output | 3ch | ||
| Sync Playback | 1/4 | 1/4/9 | 1/4/9/16 |
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | ||
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||
| Backup Mode | USB Device / Network | ||
| Ethernet | RJ-45 port (10/100M/1000M) | ||
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) | ||
| Max. User Access | 20 users | ||
| Smart Phone | iPhone, iPad, Android, Windows Phone | ||
| Internal HDD | 2 SATA ports, up to 8TB, Raid (redundancy) | ||
| USB | 2 ports (1 Rear), USB2.0 | ||
| RS232 | 1 port, For PC communication & Keyboard | ||
| RS485 | 1 port, For PTZ control | ||
| Power Supply | DC12V/3.3A | ||
| Power Consumption | 20W(without HDD) | ||
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | ||
| Dimension | 1U, 375mm×285mm×50mm | ||
| Weight | 2.3KG(without HDD) |
