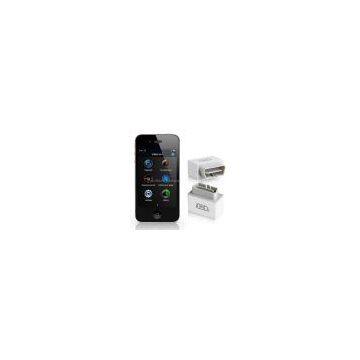

IOBD2 Bluetooth Obd2 Connector for Iphone/ipad/Android

iOBD2 MFi BT is a wireless diagnostics system for your car engine. It combines of a Buletooth OBD II adaptor that works with iOS &Android devices and an app for iOS and Android systems. It makes your smartphone or tablet into a slick display to monitor the health of your car engine.

Supported OBDII Protocols:

1. ISO15765-4 (CAN)

2. ISO14230-4 (KWP2000)

3. ISO9141-2

4. J1850 VPW

5. J1850 PWM

Vehicle Compatibility

 iOBD2 Wi-Fi works with all 1996 and & newer model year cars and light trucks (OBDII & EOBD2)-domestic and import

Supported Devices and APP

iOS and Android devices

app: iobd2

Function:

1) Diagnostic

The [Diagnostic] functions include:

[Reads DTCs]: Reads the current DTCs stored in the car engine and shows their detailed information.

[Clear DTCs]: Clears all the current DTCs.

[Live data]: Reads all the running parameters related to the ECU.

[Freeze frame data]: ECU will set DTCs and record the data stream of the car engine at the moment when emissions related faults occurred. And the data is called freeze frame data.

[Readiness test]: Shows the status of readiness test. Click Readiness test in the menu, the screen will display the test status of the car.

Support and complete: It means the car supports this test and has completed.

Support but incomplete: It means the car supports this test but has not completed.

Not supported: It means the car does not support this test.

2) My Dashboard

[My dashboard] function includes:

[Idle mode]: show you the engine rotational speed, water temperature, battery voltage, Air-intake temperature, instant fuel consumption (static), average fuel consumption.

[Cruise mode]: show you the vehicle speed, the current engine load, water temperature, Vehicle travel time, vehicle travel average speed, Continuous running mileage; instant fuel consumption (dynamic).

[Sport mode]: show you the engine rotational speed, vehicle speed, water temperature.

[Performance mode]: show you the vehicle speed, capacity, torque, horsepower and you can also customize your gauges here.

3) Trip Route Tracking

This function can track your driving route. Select Setting on the phone, choose Privacy, Open the Location Services, and turn on iOBD2 (Picture 34, Picture 35). Run the iOBD2 app, choose My dashboard, and start driving the car, it will automatically track the driving route and save it on History menu. When exiting My dashboard, it will stop tracking the driving route. You can review the saved tracking route in History menu.

Technical Specification

Dimension: 48*42*25 mm/1.89*1.66*0.99in.

Weight: 80g/ 2.83oz.

Operating Voltage: 8-19V DC

Operating Temperature: -20 to 50°C

Storage Temperature: -20 to 70°C

Bluetooth Standard: 2.1/2.0/1.2/1.1
