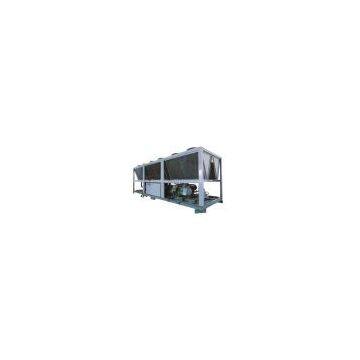

Air Screw Chiller (NWS-70ASCS)

Model NO.:NWS-70ASCS

Usage:for Refrigerate

Certification:CE

Cooling Method:Direct Cooling

Nomainal Output:137.8kw/54.4usrt

Model:Nws-70ascs

Voltage:380v/50Hz/3phase

Comprssor Power:45.8kw/60HP*1

Machine Weight:1200kg

Standard Freezing Water Flow:23.7m3/H

Retrigreant:R22

Compressor Brand:Refcomp of Italy

Export Markets:Global

Product Description

As an industrial water chiller, this water-cooled screw chiller has the following features:

1. Our compressor is imported from Italy, France and so on, being of high-quality built-in safe protection, with low noise, the electricity of province is durable.

2. Cooling capacity range: 113.8kw~838kw

3. Normal conditions: Chilled water inlet temperature is 12 degree, outlet temperature is 7 degrees. Cooling water inlet temperature is 30 degrees, outlet temperature is 35 degrees. But the lowest temperature can be -25 degress.

4. Stardard Input power: 3P-380V-50Hz, Allowable fluctuate voltage: ± 10%, allowable voltage difference in phase: ± 2%, Can also be customized according to customers'request .

5. The quantity of compressor can be one or two, each compressor is independent refrigeration system. Each other run independently. When the one is working, the other can be working or not.

6. Use PLC microcomputer control from Germany Siemens LCD touch screen, both English and Chinese human-machine interface.

7. Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year.

8. Our standard refrigerant is R22, but you can choose to use environmental refrigerant such as R407C, R134A or R507.
