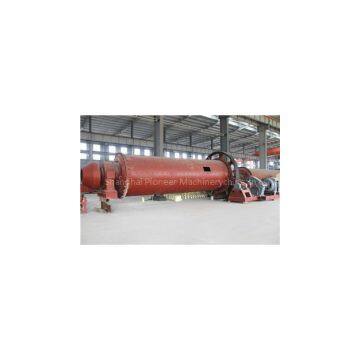

Ball Mill

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Performance characteristics of ball mill:
1.This series ball mill is of wide scope of application, simple structure and easy maintenance.
2. This series ball mill has a big processing capacity, the advantages of continuous operation is obvious.
3. Cylinder liner and grinding media can use a variety of materials, corrosion resistance is strong, and use is wide.
4. This series ball mill is of convenient installation and commissioning, easy to operate.
5. This series ball mill productivity is high; the cost of use is low.

Structural characteristics of ball mill:
This ball mill is made up of feeder part, discharging part, rotating part, transmission part (reducer, small transmission gear, motor, electric control) etc. main part. Hollow shaft adopt steel casting, lining can be converted, big rotating gear processed by casting gear hobbling .In the barrel there are board of wear-resistant, have a good characteristics of wear-resisting. The machine is of steady operating and reliable working.

Structure of ball mill:
Host of ball mill include cylinder, and cylinder are equipped with liner made from wear-resistant material and bearing bear cylinder and maintain it to rotate ,also have driving parts, such as motor, and transmission gear, pulley, V-belt etc.
