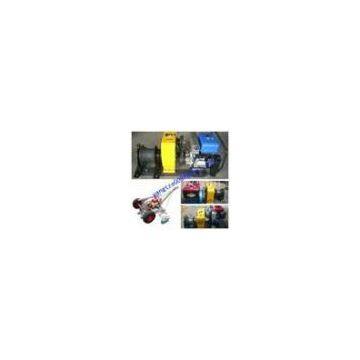

Cable Drum Winch,Cable pulling winchPowered winches are the construction tools of erecting electric circuits of high pressure electric transmission in the sky and laying eletrical cables underground. It apply to hoisting mechanical equipments and erecting pole pylon. According to different power, include Petrol Engine Powered Winches and Diesel Powered Winches.
Application:
It is used for tower erection, stringing in electric power line construction.
Features:
Speedy and Efficient;
Safe and Reliable; Cable Drum Winch,Cable pulling winch
Compact structure;
Small volume;
Light in weight;
Features
1.Engine can start by switch.
2.Easy operating.
3.The brake can hold heavy materials when working stopped.
4.Double frame can reduce the machine load from engine vibration.
5.Transmission convert to shift the speed is very easy and smooth.
Petrol Engine Powered Winches
|
Cat. No. |
QY012-3 |
QY012-5 |
QY012-8 |
|
||
|
Model |
JMC-3T |
JMC-5T |
JMC-8T |
|
||
|
Petrol Engine |
GX160 |
GX390 |
GX450 |
|
||
|
Engine Power (Hp) |
5 |
6 |
9 |
|
||
|
Rotation Speed(rpm) |
3400 |
3400 |
3400 |
|
||
|
Pull (kN)/ linespeed (m/min) |
I |
18/15 |
I |
28/18 |
I |
50/20 |
|
Ⅱ |
30/8 |
Ⅱ |
50/9 |
II |
80/10 |
|
|
Reverse I |
15/13.6 |
Reverse I |
28/16 |
Reverse I |
50/18 |
|
|
Reverse II |
30/7 |
Reverse II |
50/8 |
Reverse II |
80/9 |
|
|
Dimensions (mm) |
1200×650×700 |
1350×750×700 |
1500×900×700 |
|
||
|
Weight(Kg) |
95 |
135 |
195 |
|
Diesel Powered Winches
|
Cat. No. |
HT0712-3 |
HT0712-5 |
|
HT0712-8 |
|
Model |
JMQ-3T |
JMQ-5T |
|
JMQ-8T |
|
Engine |
170F |
R180 |
|
R185 |
