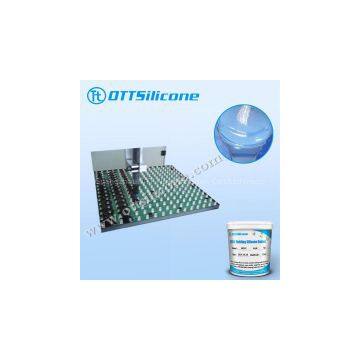

Anti-yellow Electronic potting addition silicon rubber for encapsulating LED display

Features and applications of Anti-yellow Electronic potting addition silicon rubber for encapsulating LED display

 It is a kind of low viscosity, Inherent flame resistance, two components addition cured potting silicone with heat-conducting. It cures with both on room temperature and heated temperature.

  It has the feature of the higher temperature the faster of the curing time. It can be applied to electronic components for insulation, waterproofing, fixed and flame retardant. It mainly applied in electronic components surface with materials of  PC(Poly-carbonate),PP,ABS,PVC, etc. and metal materials.

 Technical Parameters of  Anti-yellow Electronic potting addition silicon rubber for encapsulating LED display

(Please note: the above data for this product in 25 °C temperature, 55 percent humidity conditions, for reference. The accurate data is measured by customers when using.)

TECHNICAL GUIDELINES  of Anti-yellow Electronic potting addition silicon rubber for encapsulating LED display

1, Typical Application

It could be applied to

- high powered electronics,

- DC/DC module and circuit board which requires heat dissipation and high temperature resistance.

-It can be broadly used for LED screen, Wind Power Generator, PCB substrate, etc. Please put part A and part B in separate container and stir evenly before mixing the two part together.

2, Mixing Ratio: part A: part B = 1:1

3, Dearation the mixture in vacuum pump for 3-5 minutes.Then the mixture could be used for pouring.

4, Please note that the thickness of the silicone affects the curing time. If the silicone used is a little thick,then the curing time will be a little longer.The temperature also affects the curing time.When in lower temperature, we suggest customers appropriately heat the mixture to accelerate vulcanization. With temperature of 80~100°C, the silicone will cure in 15 minutes; while in 25°C room temperature, the silicone will cure around 8 hours.

PACKAGE of Anti-yellow Electronic potting compound  20Kg/pail as a set (Part A 10Kg + Part B 10Kg)

SHELF LIFE AND TRANSPORTATION of Anti-yellow Electronic potting compound addition silicon for solar(PV) panels

1. Twelve(12) months when stored at 25C in tightly closed original packages.

2. This kind of product is non-dangerous product, which could be transported as general chemicals.

3. Storage beyond the expired date does not necessarily mean that the product is no longer usable. In this case however, the properties required for the intended use must be checked for quality assurance reasons.
