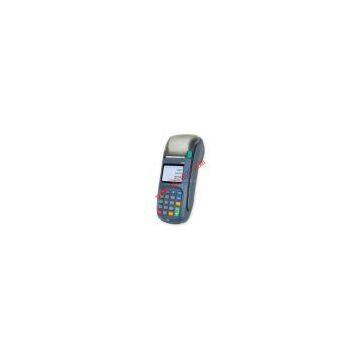

GS80 Coutertop Payment Terminal

GS80 COUNTERTOP PAYMENT TERMINAL

GFUVE's GS80 is an advanced countertop POS terminal which combines innovation and high performance to assure, faster, more reliable transactions.

The PCI approved GS80 offers advanced connectivity, equipped with various communication technologies such as GPRS, Wi-Fi, Ethernet and PSTN.  An intuitive ATM-style interface and ergonomic keypad make operation easier for merchant and consumer alike.

The GS80 can support multiple payment and value-added applications, making this one of the most reliable and advanced devices in the market.

FEATURES

High performance, ruggedized, with small footprint

Large Memory Capacity

Integrated Contactless

SPECIFICATIONS

Processor

32-bit  ARM11

Memory

192MB standard (128MB Flash, 64MB SDRAM)

Optional Micro SD (TF card) up to 32GB

Display

128 pixel x 64 pixel LCD

White backlit

Keypad

10 numeric keys & 8 function keys
4 ATM keys, 1 power ON / OFF key

Printer

Thermal printer, Speed: 20 lines / sec
Standard paper roll: 58mm (2.25 in.)

Magnetic Card Reader

Track 1/2/3, bi-directional

Smart Card Reader

1 user card, EMV

External Contactless Card Reader (optional)

Mastercard PayPass

Visa payWave

ISO / IEC 14443 Type A / B

Mifare® compliant

Card Slots

3 SAMs (options for 1 SIM), ISO7816

Communication

Modem: Sync. (HDLC up to 9600bps);

Asnyc. (V.92, up to 56Kbps)

Ethernet (optional)

GPRS (optional)

Wi-Fi (optional)

 Peripheral Ports

1 x RS232, 1 x RS232 / LAN, 1 x PIN Pad, 1x Line, 1 x USB (optional)

Security

DUKPT, Master / Session, DES, 3DES

ANSI / ISO9564 format 0, 1,3

PIN ciphered key algorithm

ANSI X 9.9 / X9.19 MAC algorithm

Environmental

0°C to 50°C (32°F to 122°F) operating temperature

10% to 90% relative humidity, non-condensing

-20°C to 70°C (-4°F to 158°F) storage temperature

Voltage

Input: 100~240VAC, 50Hz / 60Hz, 1.5A

Output: 8.2VDC, 3A

Physical

Length: 216mm (8.5 in.)

Width: 95mm (3.74 in.)

Height: 86 mm (3.390 in.)

Weight

525g

CERTIFICATIONS

PCI PTS 3.x

EMV 4.3

MasterCard PayPass 3.0

Visa payWave
