Home > Products > New product > HP1000 12V DC Mini Truck Crane/Electric Hoist

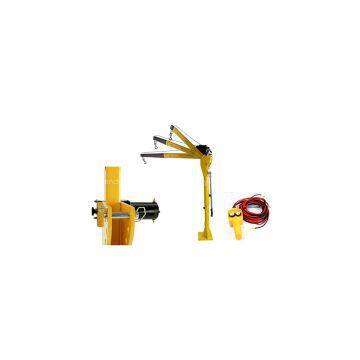

HP1000 12V DC Mini Truck Crane/Electric Hoist
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
Product Details
Place of Origin: | China | Model Number: | HP1000 12V |
Product Description
(chinacoal08)Product Introduction
HP1000 is one of our professional products, with 12 volt DC as the power. It is widely used in pick -up trucks, caravan cars, loading docks, platforms etc. With outstanding features such as structurally compact, small sized, light weighted, and minimal space required, HP1000 is a good helper for lifting goods equal to or less than 660lbs in weight.
Main Parameter
Model HP1000
Max Single line lifting capacity 500kg
Max Double line lifting capacity 800kg
Lifting Height max. Std. 1940mm (base to hook )
Reach Max 1490mm (from center to rotation )
Rotation (continuous) with Brake 360 Manual
Lifting Cable 4.8mmx4.5m -1pc (for single line lifting )
Lifting Cable 4.8mmx5.5m -1pc (for double line lifting )
Line speed with No load 3.6m/min single line
Power requirements 12V DC 125 amps
Switch Cable 4.2m
Mounting Base 250*250*18mm
Mounting Bolt Hole Pattern 170*170mm
Finish Powder Coated
Net Weight 58.5kg
