Feature and Usage

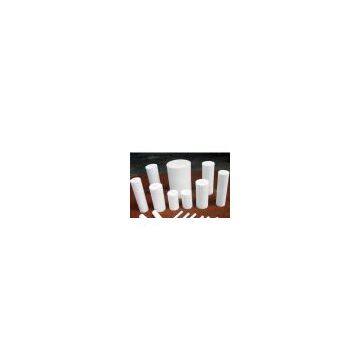

PTFE pipe is formed by pushing and molding.Pressed pipe uses corrosive medium fluid pipeline,insulation sheath and drive shaft.Molded pipe can be made into non-standard parts by mechanical working,also it can be used as non-sticking materials.It can be used at the temperature of -180℃~+260℃.It has the lowest frictional factor and the best anti-corrosive property among the known plastic materials.
The specification of Pressed Pipe(Scattered material):
|
Measure mm |
Wall Thickness mm |
Measure mm |
Wall Thickness mm |
Measure mm |
Wall Thickness mm |
|
1.2 x 0.8 |
0.2 |
7 x 4 |
2 |
12 x 10 |
1 |
|
1.5 x 0.9 |
0.3 |
7 x 3 |
1.5 |
12 x 8 |
2 |
|
2 x 1.5 |
0.25 |
8 x 7 |
0.5 |
14 x 12 |
1 |
|
2 x 1 |
0.5 |
8 x 6 |
1 |
15 x 13 |
1 |
|
3 x 2.5 |
0.25 |
8 x 5 |
1.5 |
15 x 11 |
2 |
|
3 x 2 |
0.5 |
8 x 4 |
2 |
16 x 14 |
1 |
|
4 x 3 |
0.5 |
9 x 8 |
0.5 |
17 x 15 |
1 |
|
4 x 2 |
1 |
9 x 7 |
1 |
18 x 14 |
2 |
|
5 x 4 |
0.5 |
9 x 6 |
1.5 |
18 x 16 |
1 |
|
5 x 3 |
1 |
10 x 8 |
1 |
20 x 16 |
2 |
|
6 x 5 |
0.5 |
10 x 7 |
1.5 |
22 x 18 |
2 |
|
6 x 4 |
1 |
10 x 6 |
2 |
23 x 20 |
1.5 |
|
7 x 5 |
1 |
11 x 7 |
2 |
30 x 24 |
3 |
The specification of Molded Pipe:
|
Diameter |
Wall Thickness |
Tolerance mm |
Length mm |
Tolerance mm |
|
ø10-ø150 |
≥2.5 |
±0.20 |
≤180 |
±0.5 |
|
ø150 -ø350 |
≥4 |
±0.35 |
≤350 |
±0.5 |
|
ø350 - ø800 |
≥8 |
±0.60 |
≤350 |
±0.5 |
Notice: We also produce as customers' requirements.
