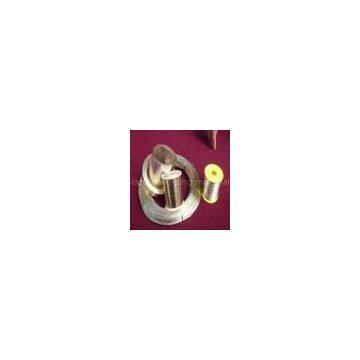

AWS BCuP-3 Phosphor Copper Brazing Rod

Name: AWS BCuP-3 Phosphor Copper Brazing Rod
Brand: hanyuan
SKU: 156861804
Availability: InStock

Jinan Welding Source Welding Materials Co.ltd

US$ 10 - 10 MOQ: 100 sets

Key Specifications

Brand Name:

hanyuan

Place of Origin:

China

Model Number:

AWS BCuP-3

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name hanyuan

Place of Origin China

Model Number AWS BCuP-3

Technology data for your reference ROHSEnvironment-friendly Solders
AWS Standard	Use expertise
BCuP-1	It is the highest temperature of the P,Cu solder,widely used in Gas appliances
and welding with BCuP-2.
BCuP-2	Good flow property,economical,widely used in the brazing of presentting in
air-conditioners and the no-vibratim load areas
BCuP-3	Have certain plasticity ,suitable for brazing copper alloy and some copper ,
which can't conjugate tightly
BCuP-4	It is of low melting point,It is especially fit for the automatic braze welding ,it
has been largely applied in the soldering with four-way valve and cut-off valve
BCuP-5	Bettered plasticity and conductivity of joint,suitable especially for brazing
copper and copper alloy with vibration load
BCuP-6	Widely used in brazing copper and copper alloy in the fields of air-conditioning and
mechanical-electrical good flow property and filling capability
Chemical composition:
Standard	Chemical compositions(%)	Temperature
JIS.AWS	P	Ag	Cu	Sn	Sb	Sodify	Liquefy	Use temp.
BCuP-1	4.8-5.3	/	Rem	/	/	705	925	710-930
BCuP-2	6.8-7.5	/	Rem	/	/	710	795	735-845
BCuP-3	5.8-6.7	4.7-6.3	Rem	/	/	645	815	720-815
BCuP-4	6.8-7.7	5.8-6.2	Rem	/	/	645	720	690-790
BCuP-5	4.8-5.3	14.5-15.5	Rem	/	/	645	800	705-815
BCuP-6	6.5-7.2	1.8-2.2	Rem	/	/	645	790	730-815
