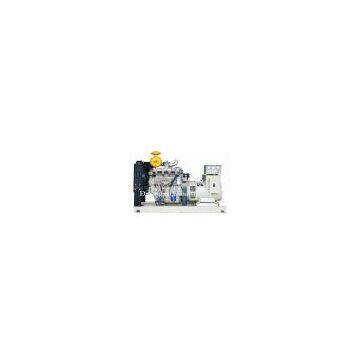

100KW Deutz Diesel Generator Set

Generating set model

CDD[S/L]-100

Prime

Standby

Gen-set power (KW)

100

110

Gen-set power (KVA)

130

142

Engine power (KW)

120

Engine model

TBD226B-6D

Engine manufacturer

Sino-Germany joint venture weichai-deutz co.,ltd

Engine configuration

6-cylinder in line, 4-stroke, spontaneously inspiration, direct spray fuel system

Engine cooling mode

The Radiator suitable for 40°CTemperature, Strap drive the cooling fan with protection cover

Speed control system

Mechanical speed controller, electricity - magnet valve control switch

Start mode

24V Direct Current Start, Including alternator & battery

Engine filter system

Dry air filter type, Fuel filters, Lube filter

Engine total displacement      (L)

6.23

Compress  ratio

16.0/1

Bore*stroke          (mm)

105×120

100%load fuel consumption  (L/h)

26.4

29.0

Specific fuel consumption          (g/kwh)

≤198

Lubricating oil consumption      (g/kwh)

≤1.36

Exhaust air flow           (m3/min)

120

Air consumption           (m3 /min)

9

Exhaust gas flow      (m3/min)

19.75

Exhaust gas temperature           (°C)

500

Oil capacity          (L)

13

Coolant capacity      (L)

27

Short circuit protection

MCCB Air switch

Rated voltage/frequency/power factors

400V/230V,50Hz,0.8 lag, 3-phase & 4-line

Stable frequency change rate

≤5%

Free load voltage adjusting range

≥95%—105%

Stable voltage regulator

≤±1%

Insulation class/protection grade

  Hclass/IP23

Telephone influence factor

TIF<50/ THF<2%

Accessory attached

A suit of start battery& connective wire; Exhaust smoke siphon, Ripple absorber, Flange, Muffler; absorber on base

Water tank ventilation area        (mm)

700*820
