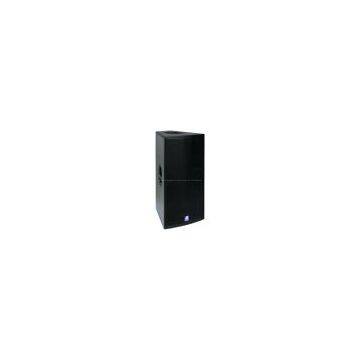

DB Technologies Flexys F315 Active Speaker (Price Each)

DB Technologies Flexys F315 Active Speaker (Price Each)

The db Technologies F315 is an active three-way system designed to render the full frequency range.

A bi-amped 1000 W/RMS digipro Class-D digital power amp with switched-mode power supply offering PFC drives this fullrange enclosure. Its powerful 15 woofer, housed in a bass reflex chassis, packs a mighty low-end punch. A specially designed dual horn section comprised of a 6 horn-loaded midrange driver and a 1 compression driver covers the middle and high frequency spectrum.

Every component renders precisely the frequency range that it handles best, creating a homogeneous yet expansive composite sonic image that covers a very wide audience area. An integrated DSP ensures the different speakers phase and time are in perfect alignment. It also performs energy management tasks, controlling RMS and thermal limiters to prevent any impending overload.

FEATURES:

* Frequency response -10 dB: 47 Hz - 20 kHz
* Frequency response +-3 dB: 60 Hz - 19 kHz
* Max SPL: 131 dB
* Bass woofer: 15, 3 voice coil,
* Midrange: 6 hornloaded, 2 voice coil
* High frequency driver: 1 compression driver, 1.5 voice coil
* Horn: 90 x 40 CD horn
* Rotatable: Yes
* Power supply: 1000-watt switched-mode power supply with PFC
* HF amp: Class-D 500 W/RMS
* Bass amp: Class-D 500 W/RMS
* Cooling: Convection, fan-free
* System presets: Flat, Processed
* Limiter: RMS, thermal limiters
* X-over frequency: 750 Hz, 24 dB/ oct. - 2000 hz, 18 dB/ oct. passive
* Signal input: XLR fem. balanced
* Signal link: XLR male balanced
* Input sensitivity: Max. -3dBu
* Mains: PowerCon Input and Link
* Enclosure: Multiplex coated with textured black lacquer
* Handles: Two side grips, one on top
* Pole mount: 36mm
* Angles up: -
* Grille: Metal backed with acoustic foam rubber
* Rigging points: 12 x M10
* Dimensions (W x H x D): 17.3 x 34.6 x 19.7
* Weight: 68.2 lbs
