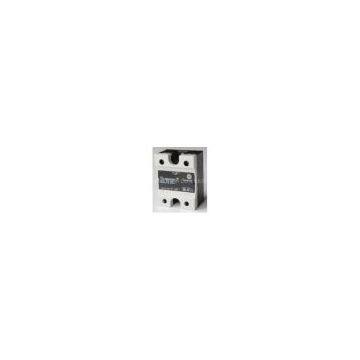

Single phase AC solid state relay AB 700-SH

The industrial, 1-phase relay with antiparallel thyristor output is the most widely used industrial SSR due to its multiple application possibilities.The relay can be used for resistive, inductive and capacitive loads. The zero switching relay switches ON when the sinusoidal curve crosses zero and switches OFF when the current crosses zero. The instant-on relay with DC control input can be used for phase control. The built-in varistor secures transient protection for the heavy industrial applications, and the LED indicates the status of the control input. The clip on cover is securing touch protection to IP 20. Protected output terminals can handle cables up to 16mm2

700-SH10JZ24，700-SH10JA12，700-SH10JA22，700-SH10HZ25 ,700-SH25HZ25 ,700-SH25GZ24，700-SH25GA24，700 -SH50GZ24，700-SH50GA24，700-SH50HZ25，700-SH25VZ25，700-SH25VA24，700-SH50VZ25，700-SH50VA24，700-SH75HZ25，700-SH75VZ25

• Zero switching or instant-on

• switching AC Solid State Relay
• Direct copper bonding (DCB) technology
• LED indication
• Built-in varistor 230, 400, 480, 600V
• Clip-on IP20 protection cover
• Self-lifting terminals
• Housing free of moulding mass
• 2 input ranges: 3-32VDC and 20-280VAC/22-48VDC
• Operational ratings: Up to 100AACrms and 600VACrms
• Blocking voltage: Up to 1400Vp
• Opto-isolation: > 4000VACrms
