Home > Products > New product > portable colorimeter,color checking equipment First one in China

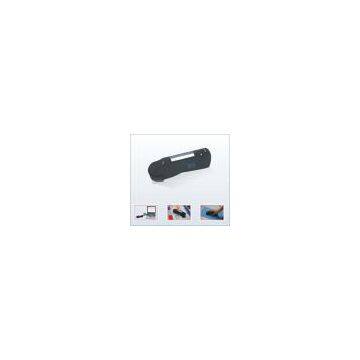

portable colorimeter,color checking equipment First one in China
- 1000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
New coming/Hot sell/Top view/Promotinal fgift/step counter/stopwatch/Multifunction pedometer
-
Hotsale Topview Pedometer with FM radio(sports product/gifts/stopwatch)
-
Hotsale new design pedometer with panic alarm/fitness item
-
USB pedometers; healthy care monitor product;promotional gift
-
sell 3Dsensor pedometer with stopwatch
Product Details
| Brand Name | CHINASPEC | Place of Origin | China | |
| Model Number | HPG2132 |
Product Description
1.Portable colorimeter can be connected with computer
2.Widely applied to quality control of plastic and printing industries.
Portable color difference meter HP-2123
Technical Features
Easy operation make you use it easily
Widely applied to quality control of plastic and printing industries
Display directly color difference by E*ab,L*a*b,CIE-L*a*b,CIE-L*c*h
Standard deviation withinE*ab0.2(test condition choose average values by 12pcs white tabula)
It can be connected with computer to do the inspection by software with USB expansion interface
|
Test accuracy |
Within 0.2 E*a b |
|
Display |
E*ab ,CIE_Lab,La,b CIE_Lch |
|
Test swpe |
L 0—100 a-128—127 b-128—127 |
|
Test time |
About 3 seconds |
|
Test interval |
2 seconds |
|
Tset aperture |
8mm |
|
Automatic shutdown |
Automatic shutdowm after 5minutes waiting |
|
Light source |
C light source |
|
Sensor |
Correct silicon photodiode carrys |
|
Power |
DC/5V(1.5A)2pcs 1.5v(AAA)batteries |
|
Size |
171*50*18.8mm |
|
Weight |
2003.6g(Exclusive battery) |
|
Ope rated temperature scope |
0-40. C132-104’f);lower than 85%relative humidity |
|
Standard accessories |
1pc nlanual/softwbag/9v battery/5v external power supply/USB connecting cable/CD |
|
Application |
Measure any color Of smooth surface |
CIE color space coordinate chart
Connecting with computer to do the computer
Workin-theory
Compa re the color difference between sample and the measured subject then
output CIE _Lab 3 groups data,and the 4 groups of deltalE,deltalL,deltaa,deltab data after
comparision
delta E stands for the total color difference.
delta L+stands for partial white, Delta L-stands for partial black(cornpa ring with plrototype)
delta a+stands for partial red ,delta a—stands for partial green(comparing with plrototype)
delta b+ stands for partial yellow ,delta b-stands for partial blue(comparing with plrototype)
|
Color dif SCOpe |
Color dif.anylysis |
|
0.0 25AE |
Very small or no;very perfect matching |
|
0.25—0.5 delta E |
Small acceptable matching |
|
0.0—1.0delta E |
Small to medium;ace-ptable in some areas |
|
1.0—2.0delta E |
Medium acceptable in some areas |
|
2.0—4.0delta E |
Has distance acceptable in special applications |
|
4.0 delta E |
Very big;not acceptable in most applications |
