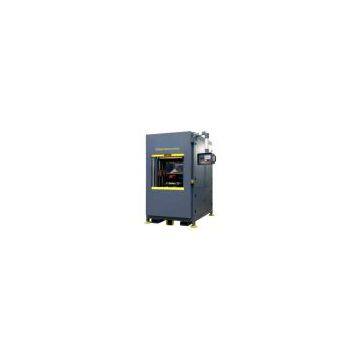

Hot Plate Plastic Welder

Hot Plate Welder

FEATURES
1.Rugged welded steel tube frame
2.All-pneumatic operation
3.Unique Rack System coordinates tool platen motion
4.Single power air cylinder for reduced machine complexity
5.Two temperature zones standard-Field upgradeable to four zones
6.Touch screen interface with all digital timing
7.Controls mounted on space saving pendant arm
8.Manual-close auto-open door
9.Door closure initiates cycle
10.Fully adjustable hot plate carrier
11.Fully enclosed cabinet with exhaust fans
12.Interior work light
13.Numerous large access doors with keyed hardware
14.Pneumatic system in lockable cabinet
15.Separate pressure controls for melt and seal
16.Vacuum part retention system


SPECIFICATIONS
1.Maximum heated platen size: 13" x 24" (330 x 610mm)*
2.Minimum tool shut height 12" (305mm), with hot plate retracted
3.Maximum tool shut height 25" (635mm), with part in place and hot plate extended
4.Maximum clamp force 1250 lbs. (5560N)
5.Electric Service Required: 240V, 3 Phase, 20 Amps
6.Pneumatic Service Required: 75 to 90PSI (5-6 Bar)

APPLICATIONS
1.Stackable Filter Cartridges
2.Sponge Mop Heads
3.Vent Damper
4.Batteries
5.Plastic Window Block
6.Water Softener Valves
7.Plastic Pallet
8.Suction Bulbs
9.Fan Shroud Reservoir
