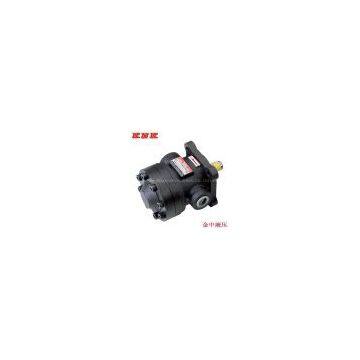

50T-07 low pressure quantitative vane pump

FOB Price

US$ 150 - 150 / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Taiwan KQK		Place of Origin	China
Model Number	50T-07

Product Description

50 T/150T series Low quantitative vane pump Manufacturers and suppliers

50T-07 low quantitative vane pump

MODEL :50T-07

Delivery at no load (cc/rev) : 6.8

Max. Operating pressure (kgf/cm2) :Rated:70 Max:90

Shaft speed (rpm) : max:2000 ,min:800

Ports size:Out:3/4 In:1

Weight (kg) flange :Foot type :10.5 Flange type: 9

Packing: Inside with a small box packaging, outside with a wooden box packaging

50T/150T Series Vane Pumps Instructions for use:

1, the direction of rotation: clockwise (Cong shaft end) of the low-pressure Vane Pump 50T as standard, only this turn. 50T low quantitative vane pump rotation direction can be instantly recognized the starter motor to check.

2, hydraulic oil: 7MPa less, low use of quantitative vane pump 50T viscosity at 40 ℃ 20 ~ 50cSt (ISOVG32) hydraulic oil.

3, the drain line pressure: low 50T of quantitative vane pump drain line must be plugged directly into the oil tank under the surface, and the resulting back pressure piping, please remain at 0.03MPa or less.
