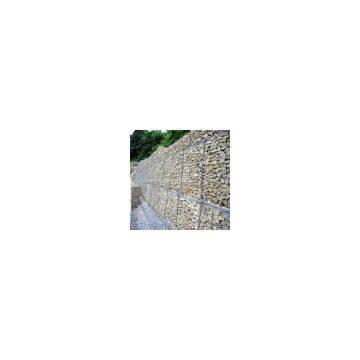

Galvanized Gabion Box

gabion boxes

Gabion baskets shall be supplied in various lengths, widths and heights. In order to strengthen the baskets, all the edges of the structure shall be selvedged with wire of greater diameter.

Gabion boxes applications:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area.

Standard sizes of Gabion and River Mattress Baskets

Gabion Boxes – Hexagonal Woven Mesh type, Class A Galvanized or with a PVC coating, of aperture 80 x 100mm, with mesh wire diameter of 2.7mm and salvage wire dia. of 3.4mm.

Length(m) x Width(m) x Height(m) = m³

•    2 x 1 x 0.5 (1m³)
•    3 x 1 x 0.5 (1.5m³)
•    4 x 1 x 0.5 (2m³)
•    6 x 2 x 0.5 (6m³)
•    1.5 x 1 x 1 (1.5m³)
•    4 x 0.5 x 0.5 (1m³)
•    1 x 1 x 1 (1m³)
•    2 x 1 x 1 (2m³)
•    3 x 1 x 1 (3m³)
•    4 x 1 x 1 (4m³)
•    2 x 0.5 x 0.5 (0.5m³)
