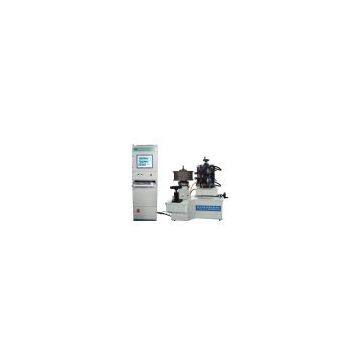

Car Wheel Radial/Lateral Run Out Measuring Machine

It is used for measuring the raidial and lateral run-out of passenger car wheel, which is capable of doing first and multiple harmonic wave calculation function.
Structure: Horizontal test stand, mechanical contact style
Wheel diameter: 13″ ~ 18″
Wheel Width: 4″ ~ 8″
Wheel Disc Offset: 0 mm ~ + 60 mm
Measuring Accuracy Resolution: 0.01 mm
Run-out Repeatability Accuracy: 0.05 mm
Wheel positioning method: center hole (expanding mandrel) + mounting face
Measuring Method: Super hard roller (GCr15 steel) contacting measurement
Machine Dimension: about L1000 mm × W700 mm × H1250 mm
Machine Total Weight: about 1.0 t
