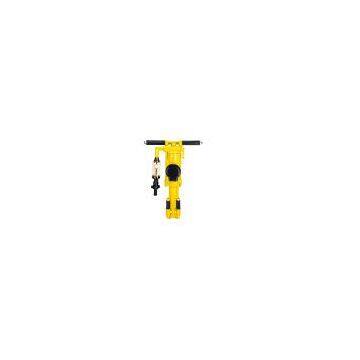

Y24-Hand-Hold Rock Drill
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DSL
Place of Origin:
China
Model Number:
Y24
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
DSL
Place of Origin
China
Model Number
Y24
Instruction
The rock drill is widely used for dry drilling in the medium-hard and hard rock(f=8-18). It’s suitable for drilling works in surface mine, quarry for boulder blasting and other dry drilling working.FY200B oil reservior is matched with this rock drill to ensure the fine lubrication.
Specification
|
Weight |
≈24kg |
|---|---|
|
Length |
604mm |
|
Cylinder dia. |
70mm |
|
Piston stroke |
70mm |
|
Work pressure |
0.4~0.63MPa |
|
Impact frequency* |
≥27HZ |
|
Air consumption* |
≤55L/s |
|
Air pipe inner dia. |
19mm |
|
Shank head dia |
34~42mm |
|
Shank dimensions(hex×length)at0.4Mpa |
22×108±1mm |
|
FY200B oil reservior: |
|
|
Capacity |
200ml |
