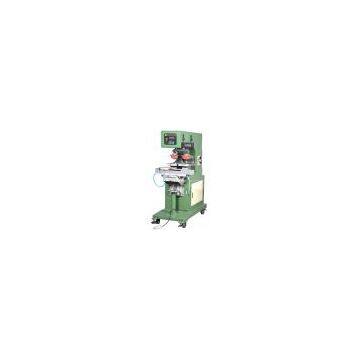

2-color Pad Printer With Shuttle
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LC
Place of Origin:
China
Model Number:
LC-PM2-250
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
LC
Place of Origin
China
Model Number
LC-PM2-250
2 color pad printing machine was a shuttle to complete the two chromatic models a single product, the shuttle table chromatic precision, does not take place to save operating procedures, work efficiency increased. Two-color printing machine that doubles as a shuttle color printing machine, color printing machine with double-headed, single-color printing machine is an enhanced version.
Feature:
·Advanced computerized system control
·pneumatically driven adopt from FESTO, can adjust the movement speed of each part
·Built-in LED digital counter
·Emergency stop system to ensure the safety of operator
·Light-weight, strong aluminum cast machine frame
·Ink trays, work table and pads are independently adjustable for easy color registration
·Speed, pad and printing stroke are easily adjustable for different printing requirements
·Ink tray, doctor blade, brush and pads are easily installed and dismounted for quick cleaning
Specifications:
LC-PM2-250
Print Color: 2 color (can be process)
Work station: 1Pcs
Cylinder head up and down distance: 75mm
Cylinder stroke distance: 275mm
Work Table size: 165 × 165mm
Standard plate size: 150 × 250mm (6 '× 10')
Maximum printing area: 130 × 230mm
Maximum speed: 1000 Pcs / Hr
Voltage: 110V/220V 50Hz
Power: 35 W
Air requirements: 6 Bar
Air Consumption: 72 Liter / Min
Machine size: 1250 × 600 × 1470 mm
Machine Weight: 200Kg
LC-PM2-300
Print Color: 2 color (can be process)
Work station: 1Pcs
Cylinder head up and down distance: 75mm
Cylinder stroke distance: 325mm
Work Table size: 165 × 165mm
Standard plate size: 150 × 300mm (6 '× 12')
Maximum printing area: 130 × 280mm
Maximum speed: 800 Pcs / Hr
Voltage: 110V/220V 50Hz
Power: 35 W
Air requirements: 6 Bar
Air Consumption: 82 Liter / Min
Machine size: 1450 × 600 × 1470 mm
Machine Weight: 220Kg
Feature:
·Advanced computerized system control
·pneumatically driven adopt from FESTO, can adjust the movement speed of each part
·Built-in LED digital counter
·Emergency stop system to ensure the safety of operator
·Light-weight, strong aluminum cast machine frame
·Ink trays, work table and pads are independently adjustable for easy color registration
·Speed, pad and printing stroke are easily adjustable for different printing requirements
·Ink tray, doctor blade, brush and pads are easily installed and dismounted for quick cleaning
Specifications:
LC-PM2-250
Print Color: 2 color (can be process)
Work station: 1Pcs
Cylinder head up and down distance: 75mm
Cylinder stroke distance: 275mm
Work Table size: 165 × 165mm
Standard plate size: 150 × 250mm (6 '× 10')
Maximum printing area: 130 × 230mm
Maximum speed: 1000 Pcs / Hr
Voltage: 110V/220V 50Hz
Power: 35 W
Air requirements: 6 Bar
Air Consumption: 72 Liter / Min
Machine size: 1250 × 600 × 1470 mm
Machine Weight: 200Kg
LC-PM2-300
Print Color: 2 color (can be process)
Work station: 1Pcs
Cylinder head up and down distance: 75mm
Cylinder stroke distance: 325mm
Work Table size: 165 × 165mm
Standard plate size: 150 × 300mm (6 '× 12')
Maximum printing area: 130 × 280mm
Maximum speed: 800 Pcs / Hr
Voltage: 110V/220V 50Hz
Power: 35 W
Air requirements: 6 Bar
Air Consumption: 82 Liter / Min
Machine size: 1450 × 600 × 1470 mm
Machine Weight: 220Kg
