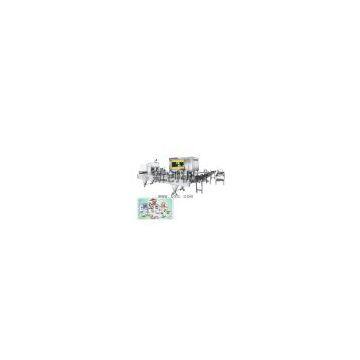

CFD-6 Square Auto Filling & Sealing Machine
Applicable Products:
juice, fruit juice,vegetable juice,concentrated juice,juice beverage,beverage, water,
Outstanding Features and Construction:
1 Aesthetic appearance, rational structure, complete function, easy to operate.
2 Electronic temperature & time control, exact filling, adjustable measurement.
3 Reliable heat-sealing, good tightness, effectively extended durability.
4 By changing the mould, products of different shapes and types can be produced.
Note : we can add or delete some devices according to your requirements!
Technical Specification
|
Model |
CFD-6 |
|
Packaging Speed: |
7,200--9000pcs / hour |
|
Filling Volume: |
50-200 ml |
|
Filling Width: |
320mm |
|
Power: |
3-phase 4-line socket(380V50HZ) |
|
Electric Machinery Power: |
0.75kw |
|
Heat Up Power: |
4kw |
|
Air Pressure: |
0.5Mpa-0.7Mpa |
|
Max.Air Consumption: |
0.45m3/min |
|
Timing Mode |
Stepless speed regulating |
|
Machine Dimension(L*W*H) |
4000*800*1700mm |
|
Package Dimension(L*W*H) |
4150*950*1850mm |
|
G.W. |
1350kg |
|
N.W. |
1200kg |
|
Note: All specifications, design and characteristics shown in the catalogue are subject to change without prior notice. |
|
