Certification:CE

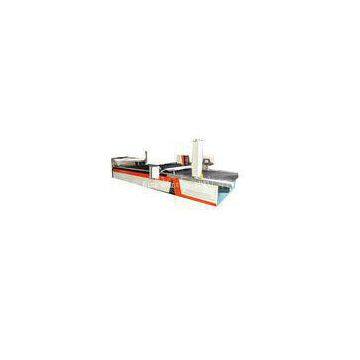

CNC Leather Cutting Machine With Automatic Conveyor Material Delivery System
Application:
This machine offers High-precision multifunctional cutting system specially developed for mass production, widely used for soft material cutting field in clothing, spinning, leather, automobile, aviation, aerospace, home furnishing and other industries, and help customers increase achievements, efficiency and capacity.
2.) The automatic sharpening device performs blade sharpening automatically, keeps cutting blade always in tartness condition, intelligently controls cutting blade’s wear and tear, extends working life of cutting blade.
Parameter:
| Technical parameters | KP-Y1725 |
| Cutting area | 1700x2500mm |
| Cutting thickness | Max. 75mm(vacuum suction)after vacuum suction, usually about 120 layers if cut knitted jersey fabric, about 50 layers if cut polar fleece, about 200 layers if cut chiffon |
| Max cutting speed | 60m/min |
| Cutting accuracy | ≤±1mm |
| Power | 16-25kw |
| Cutting style | Straight Knife Continuous Up-down Cutting |
| Software | Automatic cutting system copyright |
| Sharpen way | double gear derogatory method |
| Air pressure supply | 7 KPS |
| Cutting materials | garment/cloth/textile/leather |
| Max speed of blade working | 4000rpm/min |
| Motor and driver of cnc system | YASKAWA Japan |
| Motor and driver of | SMC Japan |
| Machine power | AC380V/50HZ |
| Software | Auto cutting |
| Weight | 3000kg |
| Size(w*d*h) | 6180*2800*1500 |
Outstanding advantages:
1.) Automatic Cleaning System (Stainless Steel Filters)Full Protection Shield System, can be manually emergency stopped anytime.
2.) Support many kinds of formats, direct open general dress design format, typesetting software.
3.) No need print out, save the typesetting, with high repeated utilization, plate-making management is convenient.
1. How to pay to you ?
T/T in advance or by Others . We can accept 30% deposit , and balance paid to us before delivery machine to you .
2. How do you send your CNC machine?
They are firstly packaged in wooden case. Usually, we send machine by ship, sometimes, as customer's requirement, send by air or by train. When the goods arrive at your sea port or destination, you can pick up goods with the bill of lading we offered. Or we can arrange the cargo agent to send goods to you.
SAMPLE:
