Strong Abrasion Long Life Angular Contact Thrust Bearing 7304B / 7304BEP For Oil Pump Use

Wuxi Beitong Bearing Co.,ltd.

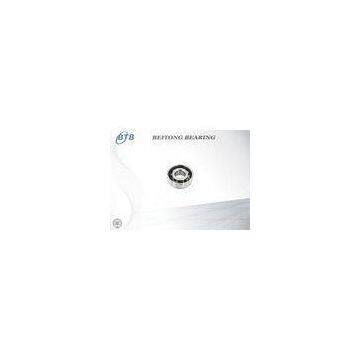

Strong Abrasion Long Life Angular Contact Thrust Bearing 7304B / 7304BEP For Oil Pump Use thumbnail-1
Strong Abrasion Long Life Angular Contact Thrust Bearing 7304B / 7304BEP For Oil Pump Use photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
BTB,OEM
Place of Origin:
China
Model Number:
7304B
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BTB,OEM
Place of Origin China
Model Number 7304B
Delivery Time:Stock or 15-30days
Certification:ISO9001:2008

Strong abrasion long life Angular Contact Bearings 7304B / 7304BEP for oil pump use

Description :

Angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies withpolyamide, sheet metal or brass cages. The raceways of the inner and outer rings are offset from each other along the bearing axis. The bearings are available in open and sealed designs. Their angular adjustment facility is very limited.

Model 7304B
Bearing material GCr15/AISI52100/100Cr6
ID*OD*W (mm) 20 X 52 X 15 mm
Seal type double shields
Lead time Stock or 15-30days
Weight(kg) 0.14
Basic dynamic load ratings/C 17.4 kN
Basic static load ratings/C0 9.5 kN
Limiting speed 16000 r/min
Clearance C2,C0,C3,C4,C5
Viberation Level V1,V2,V3,V4
Precision Rating P0,P6,P5,
MOQ No MOQ
Port Shanghai
Grease Mobil polyrex EM,Kyodo Yushi SRL
Payment terms T/T, L/C,Western Union, Paypal


Photos:


Drawing:

Other Models:

Model No. ID mm OD mm Width mm
7301-B-JP 12 37 12
7301-B-TVP 12 37 12
7302-B-TVP 15 42 13
7302-B-JP 15 42 13
7303-B-TVP 17 47 14
7303-B-JP 17 47 14
7304-B-MP 20 52 15
7305-B-MP 25 62 17
7306-B-MP 30 72 19
7307-B-MP 35 80 21
7308-B-MP 40 90 23
7309-B-MP 45 100 25
7310-B-MP 50 110 27
7311-B-MP 55 120 29
7312-B-MP 60 130 31
7313-B-MP 65 140 33
7314-B-MP 70 150

35

Our Main Products:

Deep groove ball bearings
Linear ball bearings
Pillow block bearings
Clutch release bearings
Cylindrical roller bearings
Needle roller bearings
Thrust ball bearings
Thrust roller bearings
Spherical roller bearings
Angular contact ball bearings

Payment
1: T/T: 30% as deposit and 70% balance after get copy of B/L.
2: L/C (cannot for branded bearings.)
3: Paypal
4: Discuss together between buyer and supplier.

FAQ

Q: Can I get free samples for test from your company?
A: Standared samples are avialable, all customers must pay shipping cos

Q: What is the MOQ of your products?
A: The MOQ of our products is 1 pcs for one model one size

Q: We'd like to print our Logo on the appliances. Can you make it?
A: We provide OEM service which including logo printing, and carton design.

Q: How about the Delivery time?
A: 30 - 45 days after the receipt of deposit and confirmation on all designs based of normal condition.
