Specifications
Hdpe geomembrane for seepage control project:1.ageing-resistance
2.chemical-resistance
3.climate- resistance and resistance
1,It is widely used in seepage prevention, inverted filter, drain, solution
2,width:2m-8m
3,color:black,green,white ...
HDPE/LDPE/PVC/EVA GEOMEMBRANE
We can supply high-quality geomembrane that meets GM13 and GM 17 international standars,LDPE thickness is between 0.2 and 3mm,with from 2to 8m.HDPE thickness can be from 0.2-2.8mm with width 2-8m,and we also supply the PVC and EVA products according to customers requirement .
Products Specification
Name |
Thickness(mm) |
Width(m) |
HDPE |
0.3-3.0 |
2-8 |
Physical Properties
Geomembrane Technical Parameter (GB/T 17643—1998)
Number |
Item |
Value |
||||||
GL |
GH |
|||||||
GL-1 |
GL-2 |
GH-1 |
GH-2 |
|||||
1 |
Tensile strength (Mpa) |
≥14 |
≥17 |
≥25 |
||||
2 |
Elongation(%) |
≥400 |
≥450 |
≥550 |
||||
3 |
Right angle tear strength N/mm |
≥50 |
≥80 |
≥110 |
||||
4 |
Carbon black content of a % |
≥2 |
||||||
5 |
Environmental stress cracking F20/h |
---- |
---- |
---- |
≥1500 |
|||
6 |
Oxidation induction time at 200 °C/min |
---- |
---- |
---- |
≥20 |
|||
7 |
Water vapor permeability g.cm/(cm2 .s.Pa) |
≤1.0×10(-16) |
||||||
8 |
-70°CEmbrittlement of low-temperature impact |
(Passed) |
||||||
9 |
Dimensional Stability (%) |
±3
|
||||||
Application Range

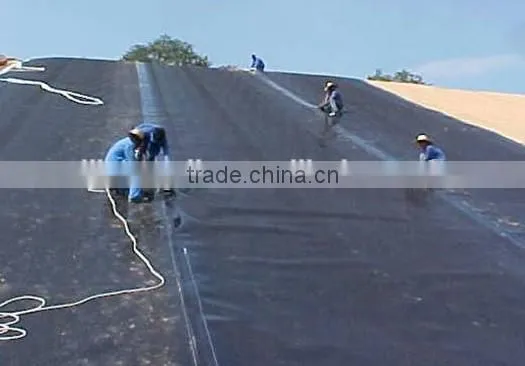

Geomembranes are mainly applied in dam,reservoir,subway,artificial lake, waste treatment and some industrial waterproofing projects.
