NEMA 17 High Torque Brushless DC Electric Motor for Security Machine 42ZW3S

Name: NEMA 17 High Torque Brushless DC Electric Motor for Security Machine 42ZW3S
Brand: 3X MOTION
SKU: 154994920
Availability: InStock

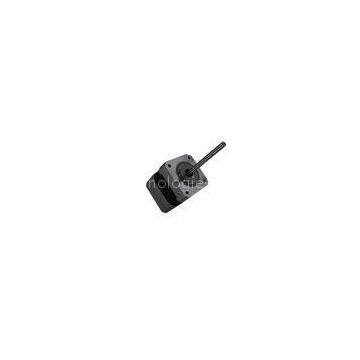

NEMA 17 High Torque Brushless DC Electric Motor for Security Machine 42ZW3S thumbnail-1

NEMA 17 High Torque Brushless DC Electric Motor for Security Machine 42ZW3S photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

3X MOTION

Place of Origin:

China

Model Number:

42ZW3S with big torque Series

Contact Supplier Request Quote Chat Now

3X Motion Technologies Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name 3X MOTION

Place of Origin China

Model Number 42ZW3S with big torque Series

Delivery Time:within 4 weeks
Certification:ISO9000. ROHS. CE

42ZW3S Brushless DC Motors with big torque for security machine

General specification

Winding type	YWE
Hall effect angle	120 Deg. Electrical angle
Radial play	0.02mm/460g
End play	0.02mm/400g
Max. radial force	15N @10mm from the flange
Max. axial force	10N
Insulation class	B
Dielectric strength	500VDC for one minute
Insulation resistance	100MΩ min., 500VDC

Performance Data

Model	Units	42ZW3S 45A10	42ZW3S 45A30	42ZW3S 45A40	42ZW3S 60A10	42ZW3S 60A30	42ZW3S 60A40	42ZW3S 75A10	42ZW3S 75A30	42ZW3S 75A40
Number of poles		8
Number of phase		3
Rated voltage	VDC	24
Rated speed	RPM	1000	3000	4000	1000	3000	4000	1000	3000	4000
Continuous stall torque	N.m	0.096	0.096	0.096	0.19	0.19	0.19	0.28	0.28	0.28
Rated torque	N.m	0.08	0.08	0.08	0.16	0.16	0.16	0.24	0.24	0.24
Rated power	W	8.3	25	33.2	16.6	50	67	25	75	100
Peak torque	N.m	0.24	0.24	0.24	0.57	0.57	0.57	0.72	0.72	0.72
Peak current	A	1.3	3.9	5.2	2.6	7.8	10.4	3.9	11.72	15.63
Torque constant	Nm/A	0.162	0.06	0.045	0.162	0.06	0.045	0.162	0.03	0.045
Back E.M.F	V/KRPM	17.1	6.3	4.8	17.1	6.3	4.8	17.1	6.3
