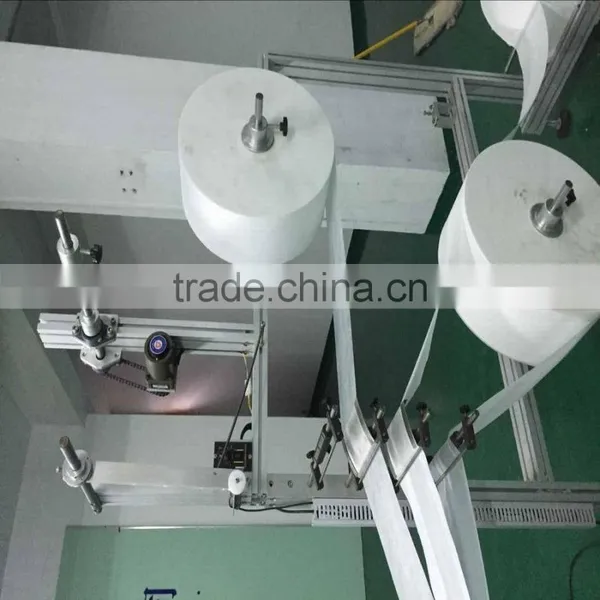

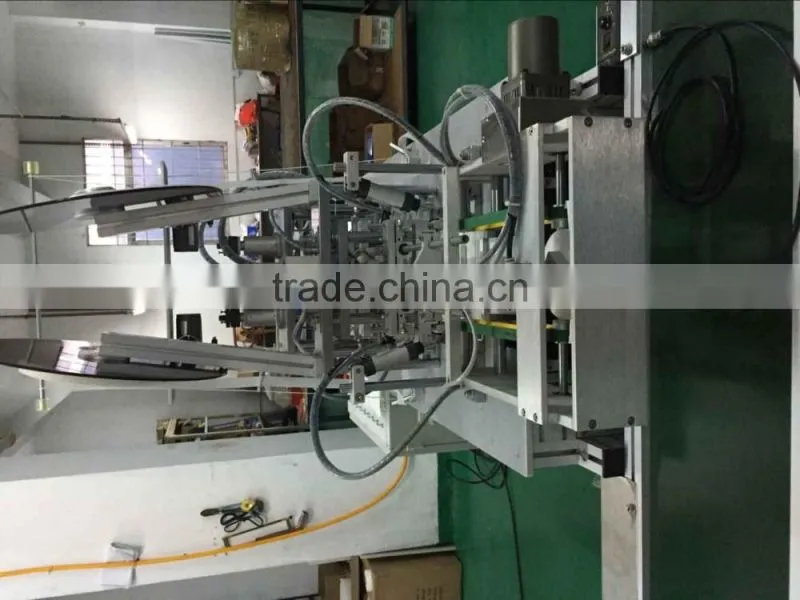

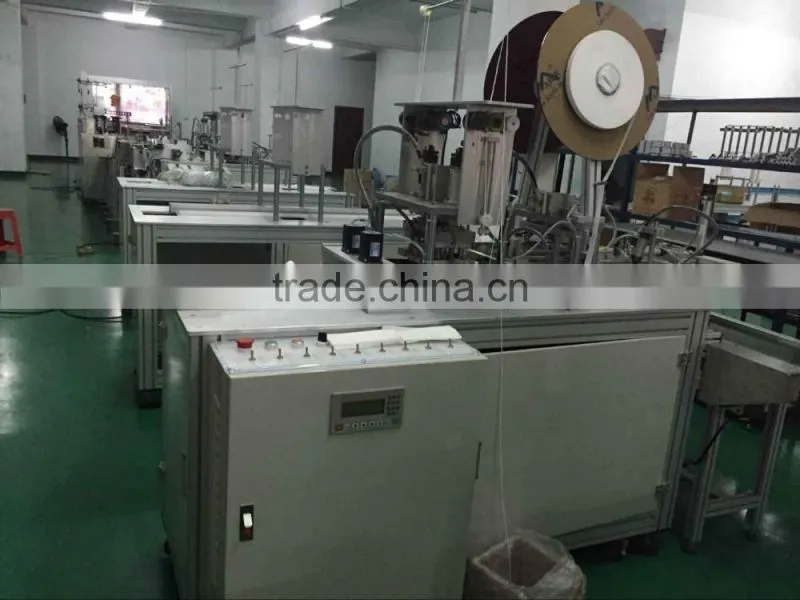

Blank face mask making machine for producing disposable face mask
1,Technical Data of Blank Face Mask Machine:
Dimension:3345(L)×630(W)×1830(H)m/m
Supply power:220V,50/60HZ
Productivity:120 to 160pcs/min
Output Power:2.7KW
The passing rate of production:more than 98%
2,Machine Features
1.Compact Machine Design,so they will save space ;
2.With high stability, low failure rate;
3.The size of mask blank can be adjusted .
4.Photoelectric detection which can lower the failure rate.
5.All the structure of the whole face mask machine was made from aluminum alloy,beautiful, strong and rustproof;
3,Main mechanism and place of origin
1,Main Mechanism:
(1)Main rack imported aluminum alloy material 1 set
(2)Raw material feeding support imported aluminum alloy material 1 set
(3)Transport rack imported aluminum alloy material 1set
(4)Face plate imported aluminum alloy material 1set
(5)Nose wire cutter:one group
(6).Nose wire feeding wheel:one group
(7).Mask edge welding system:(one group)
(8).Mask folding welding wheel:one group
(9).Blank mask cutting wheel:1 pcs
(10).Mask folding roller:one group
(11).Folding system:1 set
(12).Pulling material wheel group):(press wheel,cushion wheel)
(13)1 set(3pcs) embossing roller without logo printing,
(14)tensioner wheels:press wheel,cushion wheel
(15)Ultrasonic:2 sets ,2 electrical box electronic parts are imported ,and install working in China),(oscillator):2pcs;(steel horn):2pcs
(inverter):(spare parts from Japan,computer programming ).
( 1 pc electric control case):(motor from taiwan ,inverter from taiwan).
2,Electric Equipment
1)(Main conveying system)
1)(reducer motor):1set
2)(2motors):Finished Product Conveyer motor x 1),(feeding nose wire motor x 1) China.
3) Inverter:1pcs(taiwan).
4) Counter:1set(china)
5) Approximation Switch x 2() :2pcs(Japan)
6) Ultrasonic System x 2:(include electric box x 2, Oscillation x 2, Steel Horn x 2 ) (Tai Wan)
4,Wastage Component normal usage life and warranty):
1,Blank mask cutter:(Life time 1 to 2 years,warranty :1 year)
2,Welding system):(material is SKD-11 , Life time 3 years,warranty :1 year);
3,(Oscillation):(Life time 1 to 2 years,warranty :6 months );
4,(Steel Horn):(material is SKD11,Life time 1 to 2 years,warranty :6 months) .
Note:the warranty of other spare part is 1 year
