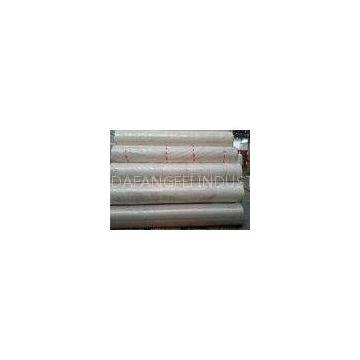

Highway Pavement Restoration Geotextile Driveway Fabric Vegetated Wrapped
Certification:ISO,SGS
High Tensile Strength Filament Woven Geotextile Fabric , geotextile underlayment
Specifications:
| Test | Unit | Standard/ Guaranted |
| Mass per unit area | g/㎡ | 160/152.0 |
| thickness | mm | 0.80/0.68~0.92 |
| width | m | 3.8 |
| Max. Tensile strength (MD) | KN/m | 12/10.2 |
| Max. Tensile strength (CD) | KN/m | 11/9.2 |
| Elongation at Max. tensile strength (MD) | % | 30.0/25 |
| Elongation at Max tensile strength (CD) | % | /35.0/27 |
| CBR bursting strength | KN | 1.8/1.5 |
| shrinkage(MD) 200℃ | % | ≤1.7 |
| shrinkage(CD)200℃ | % | ≤0.1 |
| Elongation 3% Tensile strength(MD) | KN/m | 5/4.5 |
| Elongation 15%Tensile strength(MD) | KN/m | 9/8.1 |
| Elongation 3% Tensile strength(CD) | KN/m | 3.6/3.24 |
| Elongation 15%Tensile strength(MD) | KN/m | 6.4/5.76 |
| Trapezoid tearing strength | KN | 0.2 |
| bitumen oil adsorption | L/㎡ | 0.8-1.2 |
| Melting point | ℃ | 256 |
Description:
High performance excellent polyester geotextile
We are a professional supplier of polyester geotextile, our polyester geotextile are of excellent quality. And the classicication of our polyester geotextiles as the followings:
Nonwoven geotextile:
Staple fiber needle punched geotextile(PET)
Filament needle punched geotextile (PET)
Heat bonded geotextile (PET)
Woven geotextile:
Polyester woven geotextile(PET)
Main feature description:
Good performance of our polyester geotextile;
1, high strength: As the use of plastic flat silk or polyester filament, in the dry state can maintain adequate strength and elongation.
2, anti-corrosion: PH in different soil and water can be permanently corrosion-resistant.
3, good water permeability: A gap between the filament, it has a good seepage performance.
4, anti-microbial is good: The micro-organisms, moth-eaten are not compromised.
5, the construction is convenient: Due to material light, soft, so delivery, laying, construction is convenient.
Characteristic
1. High strength
2. Corrosion resistance
3. Good creep property and hydraulics property,
4. Excellent anti-aging and heat-resistance quality
5. Construction is convenient
Application
1. Filtration of soils in drainage applications by retaining soil particles while allowing for the
Free flow of water
2. Separation and reinforcement in road railway construction
3. Prevention of soil movement in erosion control measures
4. Cushioning and protection in many containment projects
