Home > Products > Class 200 > Polyester Overcoated With Polyamide-imide Enamelled Round Copper Wire,Class 200

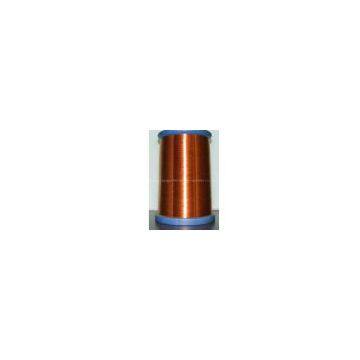

Polyester Overcoated With Polyamide-imide Enamelled Round Copper Wire,Class 200
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Polyester Overcoated With Polyamide-imide Enamelled Round Copper Wire,Class 200
-
Polyamide-imide Enamelled Round Copper Wire,Class 200
-
Polyamide-imide Enamelled Round Copper Wire,Class 220
-
Polyimide Enamelled Round Copper Wire, Class 220
-
Aromatic Polyimide Enamelled Round Copper Wire, Class 240
-
Polyester Enamelled Round Copper Wire Overcoated With Polyamide,Class 155
Product Details
| Place of Origin | China | |
| Model Number | Q(Z/XY)-1/200 |
Product Description
Dimension of copper wire
0.05-0.80mm
Heat shock of copper wire
The minimum heat shock temperature shall be 220.
Cut-through of copper wire
No failure shall occur within 2 minutes at320.
Resistance to solvents
Standard solvent of copper wire
It shall not be possible to remove the coating with a pencil of hardnessH.
Breakdown voltage
The elevated temperature shall be 200.
Continuity of insulation of copper wire
The number of faults per 30 m of wire shall not exceed the values given in GB/T 6109.1-2008.
Resistance to refrigerants
The percentage of extractable matter shall not exceed 0.5%.The requirement for breakdown voltage shall be 75% of the minimum specified value.
Temperature index
The temperature index shall not be less than 200 and the time to failure at the lowest test temperature shall not be less than 5000 h.
Standard in accordance with
GB/T 6109.20-2008;IEC 60317-13:1997;MW 35-C2003
