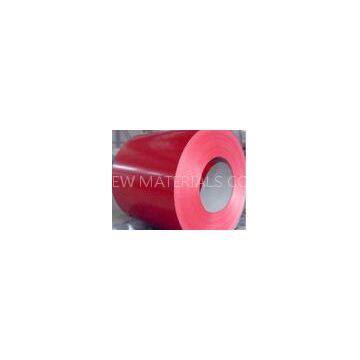

EN10327 DX51D+AZ PE Painted PPGL Coil , L/C acceptable Color Coated Steel Coil
PE panted PPGL Coil
Our general PPGL is AZ 40g, 25um painted in top and 10um painted in back, it can service for at least 20 years without fading .PPGL coil is extension of galvalume steel coil products.PPGL surface treatment customized like simulated pattern of wood grain, marble, granite. Visual effect is better in indoor and outdoor decoration.
| TEST ITEM | TOP | BACK |
| PAINT THICKNESS | >5+18 | 5-7 |
| GLOSSY | HIGH70±5,MEDIUM50±5,LOW30±5 | 35±5 |
| COATING HARDNESS | ≥H | ≥H |
| T BENDING | ≤3T | ≤4T |
| IMPACT RESISTANCE | ≥9J | ≥6J |
|
DISSOLVENT RESISTANCE(TIMES) |
≥100 | ≥50 |
| SALT SPAY TEST | ≥720hr | |
| ACID RESISTANCE | SOAKED IN 5%HCL SOLUTION FOR 300HR WHITHOUT BLISTERING, COLOR FADING AND COATING PEEL-OFF | |
| ALKALI RESISTANCE | SOAKED IN 5%NAOH SOLUTION FOR 300HR WHITHOUT BLISTERING, COLOR FADING AND COATING PEEL-OFF |
How to order?
1.1.1 We have some coils in stock, MOQ 1 coil
1.1.2 For customized products, please inform me:
a. color
Usually we can produce according to RAL color card or sample .
b. thickness
We can make from 0.14 mm to 1.6mm as your requirement
c. width
We can make from 600 mm to 1250 mm, and common width are 1000mm, 1219mm and 1250mm.
d. paint thickness
Usually we can make 25 um in top and 10um in back
e. weight of AZ coating
We can provide 40g-275g per square meter, most customers demand 40g/m2.
f. with film or not
Without film is the most selection
|
Base Metal |
Hot dipped galvalume steel DX51D+AZ |
|
Coil ID |
508mm, 610mm |
|
Color |
According to customers’ request |
|
Coated |
AZ30g-AZ180g |
|
Paint |
PE, HDP, SMP, HPC, PVDF |
|
Paint thickness |
15um-25um |
|
Surface |
Overlay film (optional) |
Payment
a. 30% prepayment and 70% against B/L copy.
b. L/C at sight (need check the bank information and account information)
Delivery time:Within 15-30 days after prepayment under normal conditions.
We will inform you when signing contract if delivery time delay
