150 W Energy Saving Brightest IP65 LED Flood Lights Outdoor AC100V - 240V

150W long distance LED Flood Light of Bridgelux COB LED Chip and Meanwell driver.

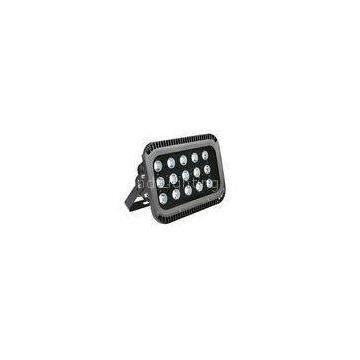

1. Outlook

2. Application
Projector / Floodlight
Tunnel Lighting / Pathway Lighting / Park Lighting
Signboard Lighting

3. Features

1) Bridgelux COB LED Chip inside, High light out put>90Lm/W, High CRI, Ra>70.

2) Patent DIWL Lens, high efficiency>92%, Anti-glare Diamond quality;

3) World Top class Mean Well CLG or HLG series LED driver inside, PF>0.95.
4) Multi-Chip on Lead Frame, Single Module LED Package Design
5) System Design Integrating Power Supply, LED Light Engine, and Heat Sink
6) Over Current, Over Voltage, Over Heat, Thunder Protection
7) Long lifespan for LED 50,000 hrs
8) 100% Recycle, No Pollution, and UV, IR

4. Specification

5. Photometry

AAI Figure

6. Operation and Storage Condition
Operation Ambient Temperature -40 to +60°C, Relative Humidity 20~90%
Input Voltage 100~240V AC, 50/60Hz
Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
Mounting Height : Suitable for 8~10m height

7.Certificate
LED Lighting Certificated with CE
Power System Certificated with UL
The Whole Floodlight Certificated with CE

8.Package
1 Carton = 1 Set    Weight:9.6KG

Carton Size : 515mm X 375mm X 250mm

9.Assembly and Installation
Assembly-Electricity

Blue : Line
Brown : Neutral
Yellow-Green : Ground

Installation
The entire series of LED flood light are designed with wide range voltage, the voltage range is 90~295 volts, the frequency is 50/60Hz.
Installation tool: A adjustable wrench group.

Installation Steps :
1.Tighten Axle Screw, and Locate Screw
2.Connecting the power line of LED Flood Light to the power supplier ,finish the installation procedure.

The installation notices
1.No necessary using other devices for LED Flood light installation such as stabilizer, regulator and so on.
2.Opening the light and lifting the buckle is unallowable.Soaking in the water is unallowable.

10.Warning

Do Not Use Other Devices for LED Floodlight Installation Such as Stabilizer, Regulator …etc
Do Not Open the Light Engine
Do Not Soak the Floodlight into Water
Do Not Light up the System Without Grounding
Do Not Use Dimmer
