Home > Products > Passenger Hoist > High Speed Passenger Hoist for Construction Site Personnel / Material Hoisting

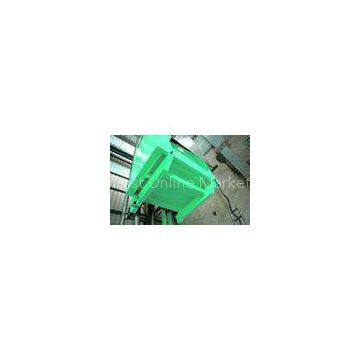

High Speed Passenger Hoist for Construction Site Personnel / Material Hoisting
- T/T L/C D/P D/A
- 7 days
You May Like
-
Rack / Pinion Industrial Lift
-
VFD Industrial Hoist Lifter / Hoisting Equipment With Double Car 1T - 3.2T
-
Rack and Pinion CH1600 Twin Cage Industrial Lift Elevator 1600Kg High Efficiency
-
Material Hoisting Industrial Elevators
-
Vertical Single Car 300kg Capacity Industrial Lift , Construction Elevator
-
Single / Double Car 2700kg Industrial Elevators With Mast Hot-dip Galvanized
Product Details
| Brand Name | BORUIDA | Place of Origin | China | |
| Model Number | CH-series |
Product Description
Certification:CE,ISO
Mast Hot-dip Passenger Hoist High Speed , Personnel / Material Hoists
Quick Detail:
|
Name |
other name |
Brand Name |
Control |
|
Personnel and material hoist |
Personnel and material hoist CH300 |
BORUIDA |
DOL and FC |
|
Loading Capacity |
300kg |
Certificate |
CE |
Description:
Personnel and material hoists are designed from the drawing board not only to excel as people carriers in multiple applications, but also to be able to handle materials of loads up to 3,200 kilograms. All personnel and material hoists are built to last in the harshest environments.
Applications:
Personnel and material hoists are built to withstand harsh environments and installations with or without an existing hoist shaft.
Specifications
Standard technical datas of single car :
|
Parameter |
CH300 |
CH500 |
CH750 |
|
Rated |
300 |
500 |
750 |
|
Rated lifting speed |
0~40 |
0~40 |
0~40 |
|
Rated passenger number |
12 |
18 |
24 |
|
Max. lifting height(m) |
150 |
200 |
200 |
|
Engine power(kW) |
1*5 |
2*5 |
2*7.5 |
|
Car inner dimension |
1*0.8*2.2 |
1.2*0.8*2.2 |
1.5*1*2.2 |
|
Car weight (kg) |
527 |
595 |
689 |
|
Mast section weight |
55 |
55 |
125 |
|
Mast section dimension (mm) |
450*1508 |
450*1508 |
450*450*1508 |
|
Safety device type |
SAJ30-1.2 |
SAJ30-1.2 |
SAJ30-1.2 |
|
Hanger rated lifting capacity |
125 |
125 |
125 |
|
Rack module |
5 |
5 |
5 |
CH series personnel and material hoists:
1). Car load capacity: 300kg~750kg;
2). Lifting speed:30m/min, 0~40m/min;
3). Increased lifting height on request;
4). Mast section: Painted or hot dipped zinc
5). Car:double car
6). Recommended car inner dimensions (L*W*H): 1*0.8*2.2 m,1.2*0.8*2.2 m,1.5*1*2.2 m, according to requirements of customers;
7). Motor and reducing device: Made in China, or uses SEW according to requirements
8). Color of car: Yellow, red, blue or your request
9). Car load capacity: 300kg, 500kg, 750kg
10). including VFD or without VFD.
Competitive Advantage:
1). Ideal for tough environments
2). No enclosed hoistway or shaft needed
3). Suitable for both indoor and outdoor installation
4). Small footprint
5). No machine room required
6). Few changes required to buildings and structures
7). Easy to retrofit on existing buildings or structures
8). No lifting height limit
9). High capacity and speed
10). Accurate levelling at landings
11). Safe descent during a power outage
12). Durable and easy to maintain
13). Wide range of optional equipment and functions
