Help CenterGlazed Steel Tile Forming Machine
Related Products

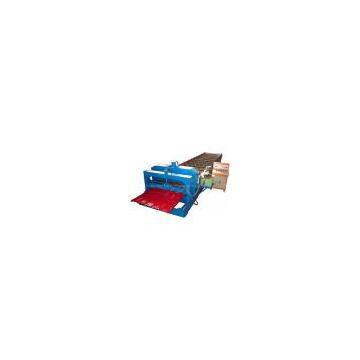

Model LM-V1000 glazed steel tile forming machine consists of uncoiler and its base,
coil sheet guiding equipment, film covered device, roll forming system, Glazed tile stamping, post-cutting equipment, hydraulic station, controlling system andsupporter
table.
Technical parameters:
1) Material spec: colored steel sheet, galvanized steel sheet
2) Thickness of coil sheet: 0.4 - 0.8mm
3) Main motor power: 4kW
4) Forming speed: 8 - 10m/min
5) Hydraulic station power: 3kW
6) Quantity of stands: about 14groups
7) Hydraulic pressure: 5 - 8Mpa
8) Controlling system: PLC
9) Index error of length: 10m - 2mm
10) Total weight: about 4,800kg
11) Voltage: 380V 3 phase 60Hz or at buyer's requirement
Material of main equipment:
1) Roller material: high grade No.45 forged steel, plated hard chrome on
the surface of roller with thickness 0.05mm
2) Active shaft material: high grade No.45 carbon wrought steel at
diameter 70mm
3) Cutter blade: Cr12 mould steel with quenched treatment
4) Glazed tile stamping :Cr12 mould steel with quenched treatment
5)the panel surface no scratch
6)Frequency converter adopt ABB,
7)PLC: Computer adopt PLC, Mitsubishi FX-IS series
8)Computer operating board adopt OP320A, China
Working flow:
Decoiling the sheet-sheet guiding-roll forming-measure length-glazed steel stamping- cutting the panel-panels to the supporter
