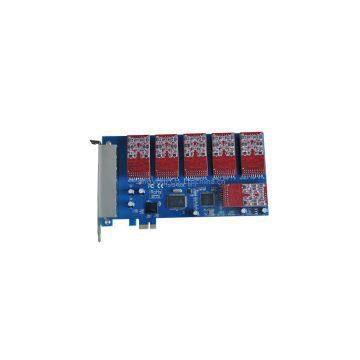

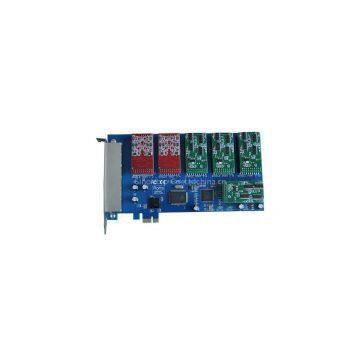

SinoV-TDM2400E 24 fxo/fxs PCI-E asterisk card

  • Type：   SinoV-TDM2400E

  • Description：

    SINOV-TDM2400E is a new generation analog card with interchangeable FXS_200  and FXO_200 modules. It can eliminate the requirement for separate channel banks or access gateways。

Main Features:

1  High security: It adopts tertiary thunder preventing technology, can prevent the thunder and lightning from striking effectively.

2  No additional power connector or supplier is required for the operation of FXS modules, reduced the line wave of the power, has improved the voice quality.

3  World Wide Usable: Configurable line interface meet global telephone line interface requirements.

4  User could choose any of combinations of FXO_200 or FXS_200 modules according to customer’s requirements.

5 32 bit bus master DMA data exchanges across PCI Express interface at 250Mbytes/sec for minimum host processor intervention.

6  The high stability firmware is exported / imported with DMA data exchange, so it accelerated and reduced CPU load greatly.  Under the environment of the same hardware, CPU rate of utilization is equal to CPU rate of utilization of using 24 port analog card.

7 It supports all the functions of Asterisk PBX systems needed.

8 Humanization is designed: The module socket that should be nipped is all adopted and stuck to one slice of sockets, can prevent stabing users finger effectively.

9 For 4U chassis.



New function:

1  Easy to install , using way is same as DIGIUM Asterisk card

2  If use Trixbox/Elastix/Freeiris2 IPPBX software, it can automatic recognition our cards, don’t need to install any drivers.



Product Spotlight



SinoV-TDM2400E is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 24 ports.

·  Adjustable Interrupt Routing Design

·  Interrupts Frequency Adjustment

·  Up to 24 Simultaneous PSTN Calls (Per PCI Slot)

·  Compatible with All Commercially Available Motherboards

·  3-Month “No Question Asked” Return Policy

·  Lifetime Warranty



Target Applications



·  Channel Bank Replacement / Alternative

·  Small Office Home Office (SOHO) applications

·  Small and Medium Business (SMB) applications

·  Gateway Termination to analog telephones/lines



Services and Features



·  Caller ID and Call Waiting Caller ID

·  ADSI Telephones

·  Loopstart Signaling Support



Operating Systems



·  Linux (all versions, releases and distributions from 1.0 up)



Minimum Hardware Requirement



·  800-Mhz Pentium III

·  128MB RAM

·  Available PCI-E Slot


Business Tips:

Shippment : We ship the items by DHL /EMS

The items will be shipped in 3 business days after receipt the payment.



OEM (Print your logo) :

We can print your logo on the cards (OEM) if you need.

-  It is free .

-  MOQ with your Logo is 50+ units

Warranty : 3 years
