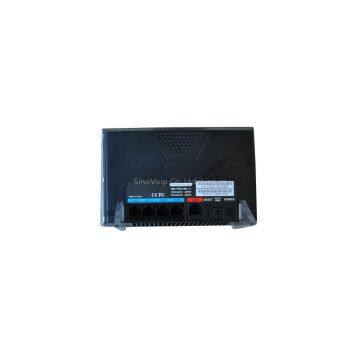

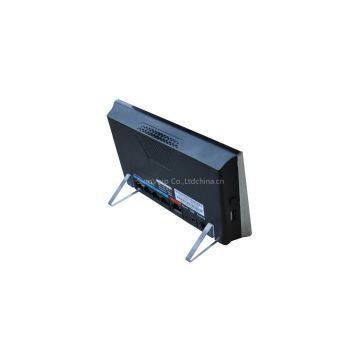

SinoV-X100 Mini asterisk IPPBX
Type： SinoV-X100
-
Description：
Simple Wizard fast configuration
Up to 32 sets SIP extensions support
Teleconference，voice menu，call queue-full features
HD communication,H.264 video,G.722 audio
Calling records in external usb disk
The PBX100 is the ideal system for small businesses and home offices requiring a pint-sized yet powerful on-premise IP PBX.Keeping up with the demands of sustainability,the PBX 100 is based on a low-power,high performance MIPS processor,providing the complicated communication features including the hardest HD communication protocol.
The compact solid-state device support 32 extensions and offers a wide range of IP PBX telephony features.At the same time,it is the first cheapest IP PBX in the world when it comes out.
PBX Function:
Up to 32 sets SIP extensions
Support extension resonance(Ring All),extension number (Follow Me)
Extension dialing routing rule set
Extension dialing intelligent analysis
Extension for BLF support
Support SIP trunk：registration mode、IP docking mode
Trunk features：DID set、routing approach
Outside dialing system support routing
Support for multiple devices in the cluster
Support for automatic dialing the called
Advanced
Up to 8 parties teleconference system,support multiple independent meeting room
Call queue strategy support random，resonance，rotate members call
Support voice menu,multilevel and key recognition
Provide background music
Voice file play，record or upload
External disk for calling records
Time-based IVRs
Codecs
Wideband：G.722
Narrowband：G.711U/A，G.729，GSM
Video readly：H.264
Fax readly：T.38，T.30
Networks
SIP Protocols RFC3261
DTMF：In-Band，RFC2833，SIP Info
IP Assignment：Static/DHCP
Time Zone：Multinational
SSH/HTTP/TFTPD/FTP Server
TFTPD Client/DHCP client
Managements
Configuration：Browser / Third Party Software
Web Tech：HTML5、AJAX、CSS
FTP-based External disk file management
SCTI Readly
Factory Reset in Web ，Reboot in Web
External Disk
Compitable: USB 1.0/1.1/2.0 Pen-disk, Cardreader, harddisk, usb-ssd and USB RAID Disk
Filesystem supported: fat16, fat32, ext2, ext3, ext4
Max disk space: 16TB(in ext3)
Security
SIP Digest authentication: using MD5
SSH Login with Username/Password
Physical
MIPS Processor
64MB RAM
16MB FLASH
1xRJ45 10/100MB Ethernet port WAN
Reset Button
1xRJ45 Debug port
Power adapter: AC 100~240V input and DC 12V/1A output
Power consumption: 1.2-2.0W
Net weight: 100g
Dimension: 150mm(L) x 90mm(W) x 31.5mm(H)
Operating humidity: 10~95%
Operating temperature: 0~45°C
