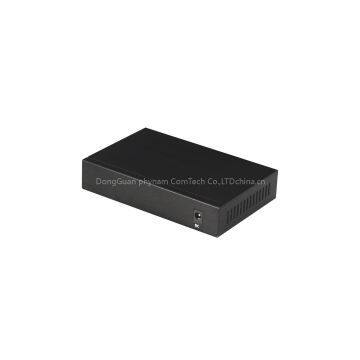

5-Port 10/100/1000M 802.3at PoE Switch With 4 Poe Port

ProductOverview

TS0504G is 5-port10/100/1000Mbps PoE switch with 4 port PoE(Port1~4), The PoE ports canautomatically detect and supply power to IEEE 802.3af/at compliant PoweredDevices (PD). The electrical power and data transmission on the same cable can expandyour network to the places where no power lines or outlets, where you caninstall devices such as APs, IP cameras, or IP phones etc.

TS0504G is easyto install and don’t need to configuration. With outstanding performance andquality, the 5-port 10/100/1000Mbps desktop PoE switch is an ideal choice forexpanding your home or office network.

Features

Interface information

l5-Port 10/100/1000Mbps Giga Ethernet

l4-Port PoE (Port1~4)

PoE(Powerover Ethernet）

lComplies with IEEE802.3af/at Power overEthernet

lSupports PoE Power up to 32W for each PoEport

lAuto detect power device

lPoE Overload Alarm LED

lRemote power and Data feeding up to 100m

Switch

lFlow Control for Full Duplex operationand back pressure for Half Duplex Operation

l2K MAC address, automatic addresslearning and address aging

lSupport Energy-Efficient Ethernet (EEE)function (IEEE802.3az)

Key Features and Benefits

PoE Features

The TS0504G can provide up to 32 Watts ofpower to attached devices, such as VoIP phones, wireless access points;surveillance cameras etc, all over existing cat. 5cables. The switch eliminatesthe need for individual power sources for devices in the network, saving oncosts for power cables and avoiding power outlet availability issues.

PoEPower Usage Display

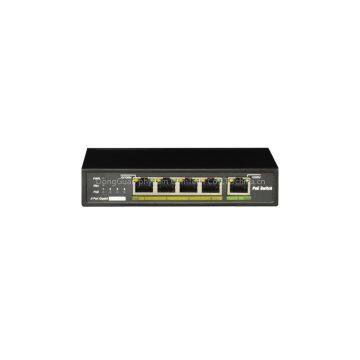

The TS0504G helps users to monitorcurrent status of PoE power usage easily and efficiently by its intelligent PoEManagement feature of LED indication, there are one orange LED named “max”located on left side of the front panel. When Port 1-4output is >= 80%, the LED will belighted up, when Port 1-4 output is> = 100%; the LED will blink to notifycustomers for better PoE allocation. If PoE Power consumption over 100%, thesystem will cut off the power of the lowest-priority port. Priority (port 1> port 2 >port 3 > port 4).

Application

TS0504G is an ideal solution for IEEE802.3af and High Power IEEE 802.3at Power over Ethernet (PoE) application. itis designed specifically to satisfy the growing demand of higher powerconsuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) /Speed Dome network cameras, multi- channel (802.11a/b/g/n) wireless LAN accesspoints and other network devices by providing double PoE power thanconventional 802.3af PoE currently.
