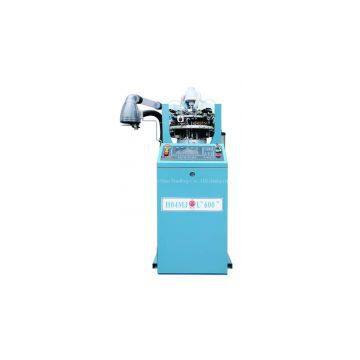

H04MJ-600 -typestockings machine is controlled by the computer system with four weaving system andsingle cylinder jacquard stockings knitting machine,The machineuses an independent exhaust fan or central exhaust systems for stretch fabric, the Machinesequipped with no torsion device,the cylinder direct drive servo motor rotation toreduce driveline and transmission error.By the threestepper motor control Shengke eyebrows and control cylinder to lift.it Can produce differentdensity.Pressurizedoil to lubricate Knitting and Sinker and needle selection tablets, the Computercontrol the whole process of making socks and Style and quality.In order toachieve the best results for jacquard,Yarn bobbin using lateral movement,The veil ,bottom yarn , dyed yarn to achieve the best angle.The machine canuse synthetic fiber , rayon and bare spandex yarn and Covering to produces stockings,The mainproductions are short socks , stockings , pantyhose and other types of socks.H04MJ-600 Stockings knitting machines can knit floating Elastic line to befull weave state.Not only can knit plain , mesh , jacquard , and each rowcan knit 2-3 color patterns organization , this feature is only H04MJ-600 -typeto possess.
Function:
Type:H04MJ-600
Needles diameter :4'' 4-1/2''
Needles&needle selectors: 192-400N,four Electronic needle selectors
Machine power cost :1.5KW
power supply :380V ;frequency：50/60HZ
working Speed :450RPM(jacquard); Maximum: 700RPM
Average output:pantyhose 350/24hours ,short jacquard sock: 600 pair /24hours
Driving system :direct servomechanisms, synchronous belt drive
Weaving system :different choice of elastic ribbon or be tabby when alltextile needle Working ,jacquard web like pattern,there are 2-3 designs in eachrow,be made in flower in flower.
Operation interface:display screen and keyboard inputting
Automatic stop: Infrared disconnected
oil system: automatic supply oil system.
Out size:2700mmX1300mmX1300MM(LxWxH)
Net weight:350kgs
Features:
1 Chinese and English display, large LCD display shows both character andfigure.
2 Capacity of memory is 1M,can store many patterns.
3 Can input 2 patterns and 2 program files.
4 Computer control system can drive at most 6 ways of needle, 16 knivesand 64 ways of air valve.
5 Pattern and program data can be input/ output by disk.
6 Equipped the UPS system can memory the current program and knittingaction if transience power off. When the power restored, it can continueknitting to avoid any loss or wastage.
7 Password-protection for parameter setup, to avoid the inadvertent changeor unallowed modification, improve the reliability and safety.
Characteristic:
Waist belt:The waist belt rise or fallcontrol by pneumatic,have 2 work positions,knitted the waist belt at highposition and knitted the fabric at low position.
Clippers device:The clippers rise and fall control by pneumatic.if yarm not cutoff hall alarm automatically,also can blow the air to clean the slit up yarnand reduce the machine breakdown.
Stitch density:The stitch cam have enter and exit work position function.canknil multiple feeders pattern,also have work status test function and machincin abnormally starus shall auto-stop and alarm.Adopt cam and air cylinder toachieve the stitch adjust without interval.Machine equip the high speedstcpping motor will achieve the 3D function.
Actuaror:Adopt 16 leves electric ceramic actrator.strueture easily reliable lowenergy consumed ahd low generate heat.
Cylinder up/down;the cylinder rise and fall eontrol by stepping molor,which cansubstantially adjust the stitch density.The cylinder height position shalldecide the stitch density basis value.
Lubricate:Lubrication by mechanic control,which lubrication during mackingrevolution,because the pantyhose machinc is high speed runing and mustcontinuous lubrication when machine revolution,which control the temperaturerises and reduce the machine abradc.
