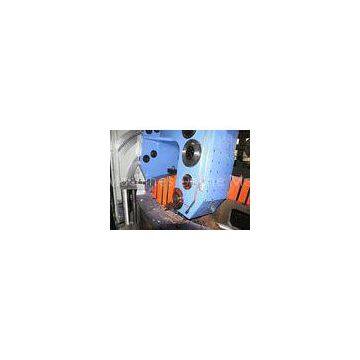

YK22160 CNC Spiral Bevel Gear Milling Machine , High Precision Gear Drive Milling Machine
Description:
1．Spiral bevel gear milling machine this machine is a three axis CNC, is the cradle of motion (X axis), moving the workpiece spindle (Y - axis) movement and the cutter axis (Z axis).
Cutter spindle rotation frequency adjustment control, largely because of cutter diameter changes caused by the use of large, this machine can be used for 18 \"~40\" disc, a three switching gear, from the power loss due to the speed change of. Three switching gear as the cutter diameter divided by 40M/.
2．Machine cradle and workpiece box components are used in high precision worm gear drive, in order to ensure the accuracy and precision of hobbing gear indexing.
3．This machine is in the adjustment of the position, the shift on the surface of the guide rail, a hydraulic floating device, used to reduce the moving force.
4．CNC system, electrical components, hydraulic components, bearings and seals, are made of high quality and have CE certification unit, so as to ensure the reliability of the machine tool.
5．Machine tool hydraulic oil temperature control.
6．The machine is equipped with a protective cover and automatic chip removal.
7．This machine has the advantages of strong rigidity, shaking table locking and upper beam locking mechanism enables the machine to form the whole frame structure, can be used for scraping of hard tooth surface.
Quick Detail:
This machine is a large machine tool, available in a variety of machining method of maximum diameter of 1600 mm, maximum modulus of spiral bevel gear is 30 mm and Zerol Bevel Gear and hypoid bevel gear. Large spiral bevel gear processing is especially suitable for mining, petroleum, metallurgy, ship, wind power, cement, port machinery in the field.
The machine tool workpiece precision reach level 8. Through the fine adjustment of machine tools, precision machining parts by the level 7 or above.
Specifications:
| Workpiece to Be Machined | ||
| Max. Outer cone distance(35°spiral angle, 9″cutter) | mm | 1610 |
| extreme ratio | 10:1 | |
| max. Pitch diameter (35°spiral angle) | ||
| transmission ratio10:1 | mm | 1610 |
| transmission ratio2:1 | mm | 1445 |
| transmission ratio1:1 | mm | 1145 |
| max. Module | mm | 30 |
| max. Cutting depth | mm | 70 |
| max. Face width | mm | 240 |
| max. Radial setting | mm | 620 |
| spiral angle | 0°~45° | |
| teeth number | 4~100 | |
| work spindle | ||
| diameter of taper hole at large end | mm | 300 |
| taper | 1:20 | |
| diameter of through hole | mm | 245 |
| diameter of spindle flange | mm | 510 |
| cutter diameter | 18″~40″ | |
| workhead settings | ||
| max. offset | mm | 120 |
| machine center to spindle nose | mm | 200~1150 |
| other | ||
| Main motor power | kw | 22 |
| Machine tool electrical total power | kw | 34 |
| overall dimension (L×W×H) | mm | 5800×4492×3900 |
| Net weight | kg | 75000 |
