The 3x1 HDMI Switcher allows access to multiple HDMI sources, using a single HDMI sink.
The Switcher allows 3 HDMI devices to be switched easily through one HDMI compatible monitor or projector. The Switcher can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
FEATURES
l Five HDMI 1.3 input signals switched to a single HDMI 1.3 sink devices
l HDCP 1.2 protocol compliant
l Support deep color 30bit, 36bit
l Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
l Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
l Support signal retiming
l Support input up to 15metres AWG26 HDMI 1.3 standard cable length,
output up to 25metres AWG26 cable length
l Inputs can be switched with the IR remote control,also can be controlled by button.
l It can smartly jump over those input sources which are not connected.
l With the smart function of memory, it can come back to the latest status when restarted
or reconnected.
l No loss of quality
l Installs in minutes
l Need DC5V/1A power supply

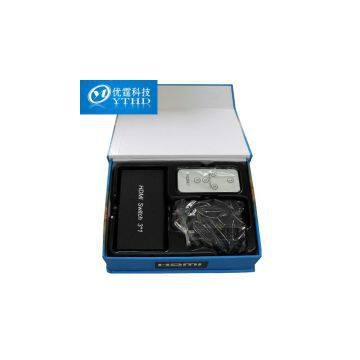

The accessories with the machines lists :
1,5V Power Adaptor
2,Remote
3,one pc of Manual
CONNECTING AND OPERATING:
1. Connect one cable from each HDMI source devices into HDMI Switcher inputs.
2. Connect one cable from display (monitor or projector) into the HDMI Switcher outputs.
3. Connect 5V power supply to the HDMI 4x1 Switcher.
4. Use the RMT-IR remote control port to remotely switch or use button to switch between
sources.
SPECIFICATIONS: HDSW0301M
HDMI version................................... HDMI 1.3
HDCP version....................................HDCP 1.2
HDMI resolution................24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format.......................24bit/deep color 30bit,36bit
Support audio format...............DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth................................250MHz
Max transmission bandwidth.................7.5Gbps
Input/Output TMDS signal ....................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ......................... 5Volts p-p (TTL)
Input cable distance..............≤15m AWG26 HDMI 1.3 standard cable
Output cable distance.............≤25m AWG26 HDMI 1.3 standard cable
Max working current.........................650mA
Power adapter format.....Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range.............................. (-15 to +55℃)
Operating Humidity range......................5 to 90%RH (No Condensation)
Dimension (L x W x H).................................115x61x25 (mm)
Weight........................................190g
IR Remote Operating Instruction
1．Firstly take off the plastic film in the rear of the remote board.
2．If you want to select any of the four signal sources to the output, press the 1,2,3, or
4 key .Like if you want to switch the 2 input signal to the output, press the 2 key directly.
3．The up/down key in board is for switching the signal to the output circulatingly, and
the remote will jump over the signal source input when it is no signal input.
4．The plastic film is strongly advised to put it in the rear of the remote board when the remote is not used for long time.
